MSI PRO B760M-P Motherboard - INTEL B760 Chipset, LGA 1700, DDR5 6800+(OC) Memory Support, PCIe 4.0, RAID Support, Realtek RTL8111H Gigabit LAN, Realtek ALC897 Codec Audio, mATX Size

Introducing the MSI PRO B760M-P Motherboard, a powerhouse of a motherboard designed to support the latest 14th, 13th, and 12th Gen Intel processors, as well as Intel Pentium Gold and Celeron processors with LGA 1700 socket. Built with the INTEL B760 chipset, this motherboard delivers exceptional performance, making it an ideal choice for gaming enthusiasts, content creators, and professional users.

When it comes to memory, the MSI PRO B760M-P Motherboard boasts 4x DDR5 slots with a maximum memory capacity of 192GB. It supports DDR5 memory speeds up to 6800+ MHz (OC), allowing for incredibly fast and efficient multitasking and data processing. With support for Intel XMP 3.0 OC, dual-channel mode, and non-ECC un-buffered memory, this motherboard ensures a seamless and stable computing experience.

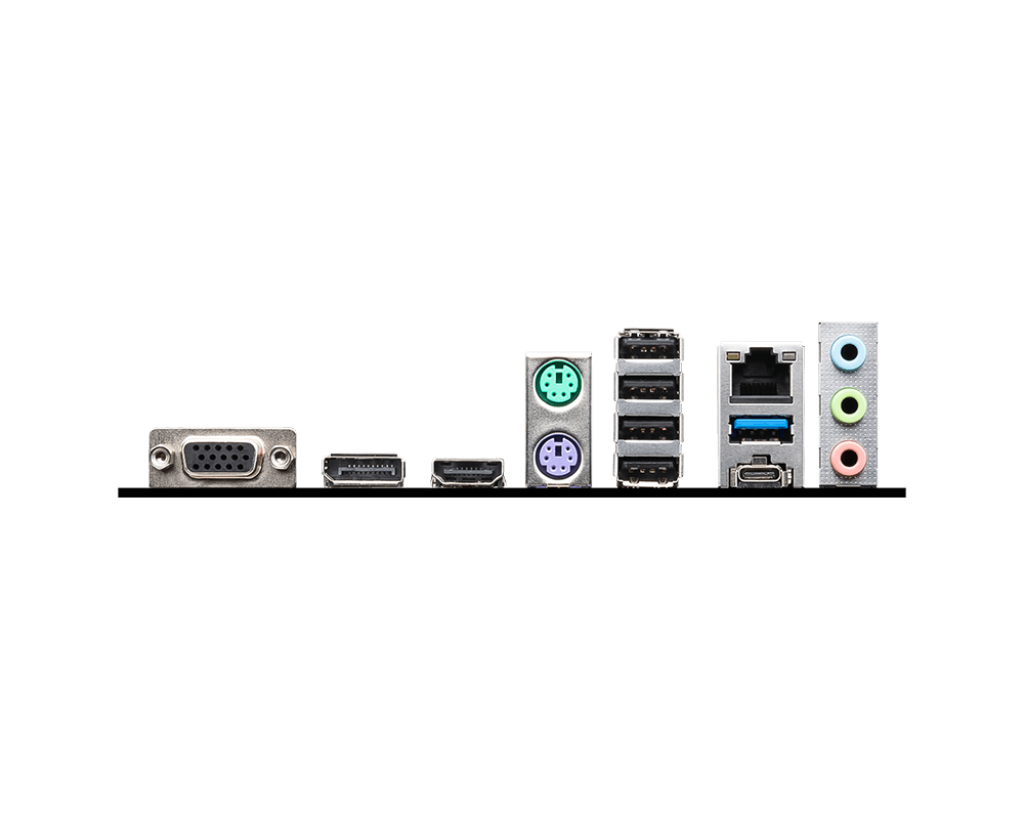

Equipped with onboard graphics including 1x HDMI™, 1x DisplayPort, and 1x D-Sub, the MSI PRO B760M-P Motherboard offers exceptional visual clarity and display resolution. The HDMI™ and DisplayPort supports resolutions up to 4K, providing an immersive viewing experience for gaming, multimedia, and professional applications.

In terms of expansion, the MSI PRO B760M-P Motherboard features 1x PCI-E x16 slot and 2x PCI-E x1 slots, providing ample connectivity options for additional graphics cards, SSDs, and expansion cards. The PCI-E 4.0 support ensures high-speed data transfer and maximum performance for all your peripherals.

For storage, this motherboard offers 2x M.2 slots and 4x SATA 6G ports, providing plenty of options for ultra-fast SSDs and traditional hard drives. It also supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, ensuring data security and redundancy.

The MSI PRO B760M-P Motherboard is also equipped with a range of USB ports, including 4x USB 2.0 ports, 1x USB 3.2 Gen1 Type A port, and 2x USB 3.2 Gen1 Type A ports, as well as a USB 3.2 Gen2 Type C port, providing high-speed connectivity for all your peripherals and devices.

In terms of networking, the motherboard features a Realtek RTL8111H Gigabit LAN for fast and reliable wired connections, while the Realtek ALC897 Codec delivers 7.1-Channel High Definition Audio for an immersive sound experience.

With a range of internal I/O options, including power connectors, fan headers, front panel connectors, and USB ports, the MSI PRO B760M-P Motherboard offers flexibility and customization for building your dream PC.

The inclusion of 4x EZ Debug LEDs and support for Windows 11 64-bit and Windows 10 64-bit ensures easy troubleshooting and compatibility with the latest operating systems.

Measuring at mATX 243.84mmx243.84mm, this motherboard is compact and versatile, making it suitable for a wide range of PC builds.

In conclusion, the MSI PRO B760M-P Motherboard is a feature-packed, high-performance motherboard that offers exceptional performance, connectivity, and expandability for gaming, content creation, and professional applications. With its cutting-edge technology and robust design, this motherboard is the perfect foundation for building a powerful and reliable PC.
