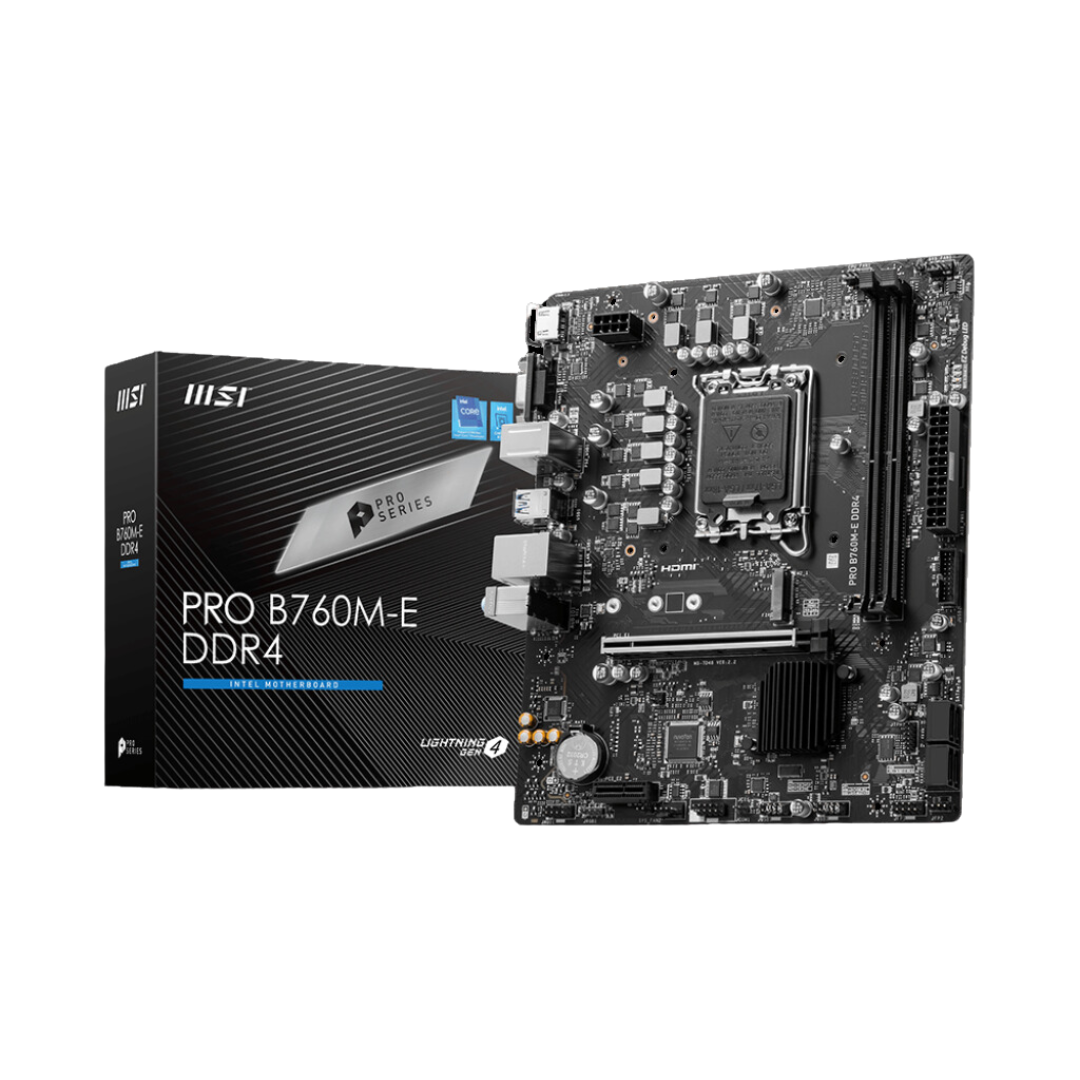

MSI PRO B760M-E DDR4 Motherboard: Intel 14th/13th/12th Gen CPU Support, 64GB Memory, PCIe 4.0, SATA RAID, Windows 11 Support

Experience powerful and reliable performance with the MSI PRO B760M-E DDR4 motherboard. Designed for Intel® Core™ 14th/ 13th/ 12th Gen Processors, as well as Intel® Pentium® Gold and Celeron® Processors, this motherboard is a versatile and high-performance option for your computing needs.

With support for up to 64GB of DDR4 memory, with a maximum overclocking frequency of 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC), the MSI PRO B760M-E DDR4 provides the speed and capacity you need for demanding applications and multitasking.

Onboard graphics include 1x HDMI™ and 1x D-Sub, with support for HDMI™ 1.4 with HDR and a maximum resolution of 4K 30Hz. The motherboard also features 1x PCI-E x16 slot, 1x PCI-E x1 slot, and supports PCI_E1 Gen PCIe 4.0 and PCI_E2 Gen PCIe 3.0 for expanded connectivity options.

For storage, the MSI PRO B760M-E DDR4 includes 1x M.2 slot supporting PCIe 4.0 x4 / SATA mode, as well as 4x SATA 6G ports. Additionally, the motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.

Connectivity options abound with 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports on the rear panel, and an additional 4x USB 2.0 and 2x USB 3.2 Gen1 Type A ports on the front panel. The Realtek RTL8111H Gigabit LAN and Realtek ALC897 Codec 7.1-Channel High Definition Audio ensure fast and high-quality network and audio performance.

The MSI PRO B760M-E DDR4 motherboard also features a range of internal IO options, including power connectors, CPU and system fan connectors, front panel, chassis intrusion, front audio, com port, RGB LED connector, TPM pin header, and additional USB ports, giving you the flexibility and customization you need for your system build.

With 4x EZ Debug LED and support for Windows 11 64-bit and Windows 10 64-bit operating systems, the MSI PRO B760M-E DDR4 is a reliable and feature-rich choice for your computing needs. The mATX form factor of 200mmx236.16mm ensures a compact and versatile fit for a range of system builds.

In summary, the MSI PRO B760M-E DDR4 motherboard is a powerful, reliable, and feature-rich option for your gaming, content creation, or professional computing needs. With support for the latest Intel processors, high-speed memory, and a range of connectivity and customization options, this motherboard provides the performance and flexibility you need for your next system build.
