Product information

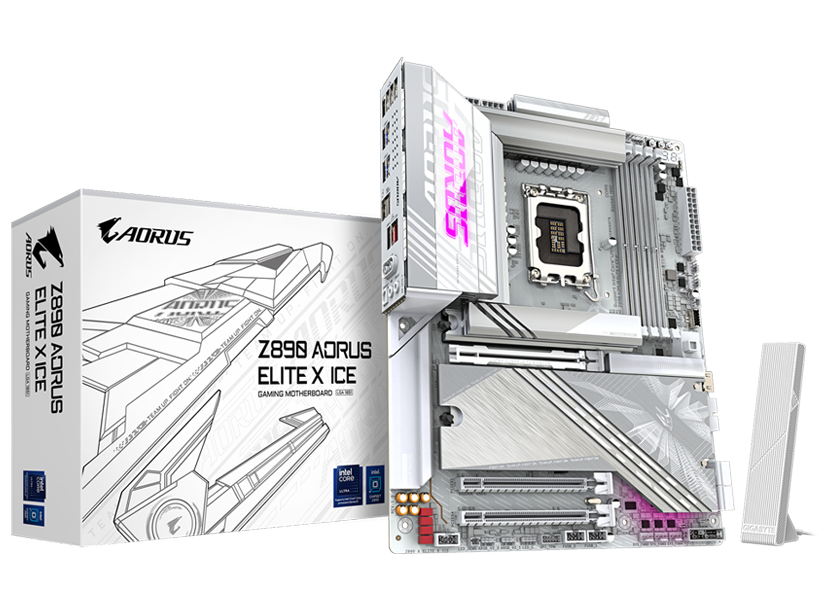

Gigabyte Z890 AORUS ELITE X ICE DDR5 Motherboard
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH ：Auto- Over clocking Software by AI models
- AI Perf drive ：Provides optimal and customized BIOS pre-set profile for users
- Premium Compatibility：4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug ：Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus ：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link ：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI： Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HW info for real-time monitoring on CPU power phases
- Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal ：VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity ：THUNDERBOLT™ 4 Type-C with DP-Alt
- High-Res Audio：ALC1220 & WIMA Audiophile Grade Capacitors
- Ultra Durable PCIe Armor ：The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X ：PCIe 5.0 x16 slot with 10X strength for graphics card
Model
Z890 AORUS ELITE X ICE
Supported Chipset
Intel® Z890 Express Chipset
Supported Memory
DDR5
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support
Supported Audio
Realtek® ALC1220 CODEC
LAN
Realtek® 2.5GbE LAN chip
Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Expansion slots
CPU
Storage Interface
CPU
Supported USB
CPU
Internal I/O connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x HDMI port (Note)
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x noise detection header
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
H/W monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Unique Features
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
