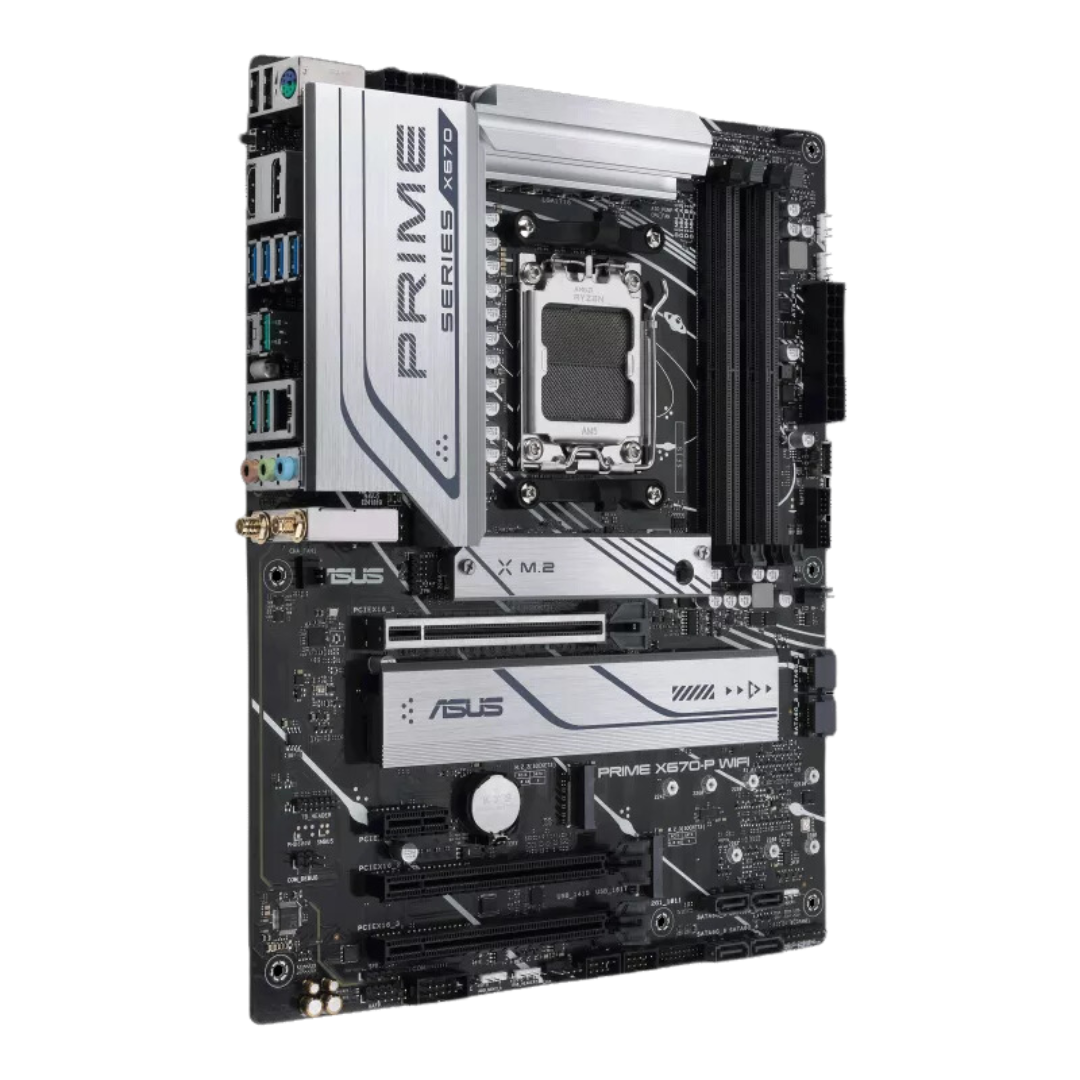

Experience the next level of performance and efficiency with the Asus Prime X670-P WIFI CSM Motherboard. Designed for the latest AMD Ryzen™ 7000 Series Desktop Processors, this motherboard provides exceptional power and reliability for all your computing needs.
Featuring the AMD X670 chipset, the Prime X670-P WIFI CSM motherboard offers advanced connectivity and performance capabilities. With support for 4 x DIMM slots and a maximum capacity of 128GB DDR5 memory, you can experience blazing-fast speeds and seamless multitasking with ease. The dual-channel memory architecture and support for AMD Extended Profiles for Overclocking (EXPO™) ensure that you can maximize the potential of your system.
Equipped with multiple expansion slots, including 2 x PCIe 4.0 x16 slots and 1 x PCIe 3.0 x1 slot, the Prime X670-P WIFI CSM motherboard delivers outstanding graphics and storage options. The motherboard supports up to 8K@60Hz via DisplayPort 1.4 and 4K@60Hz via HDMI® 2.1, providing stunning visuals for gaming, multimedia, and professional applications. Additionally, the M.2 slots and 6 x SATA 6Gb/s ports offer ample storage options for your data and multimedia files.
Stay connected with the built-in Realtek 2.5Gb Ethernet and 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) for high-speed networking and wireless connectivity. The motherboard also features a comprehensive selection of USB ports, including USB 3.2 Gen 1 and USB 3.2 Gen 2 ports, ensuring seamless connectivity for all your peripherals and devices.
For immersive audio experiences, the Prime X670-P WIFI CSM motherboard comes with Realtek 7.1 Surround Sound High Definition Audio CODEC, audio shielding, premium audio capacitors, and dedicated audio PCB layers. Enjoy crystal-clear sound and multi-streaming capabilities for an enhanced audio experience.
With advanced features such as DIGI+ VRM, LANGuard, M.2 heatsink, and BIOS FlashBack™ button, the Prime X670-P WIFI CSM motherboard offers enhanced protection, cooling, and customization options. The motherboard also includes ASUS-exclusive features such as Armoury Crate, Aura Sync, and ASUS EZ DIY tools for easy customizations and system management.
Designed for easy installation and compatibility, the Asus Prime X670-P WIFI CSM motherboard comes with all the necessary accessories, including SATA 6Gb/s cables, ASUS Wi-Fi moving antennas, I/O Shield, and more. Backed by a 3-year warranty, you can trust in the reliability and performance of this motherboard for years to come.
In conclusion, the Asus Prime X670-P WIFI CSM Motherboard is a powerhouse of performance and features, making it an ideal choice for gaming, content creation, and professional computing. Upgrade to the next generation of computing with this cutting-edge motherboard and experience unparalleled speed, connectivity, and reliability.
Model
Prime X670-P WIFI CSM
Supported Memory
4 x DIMM, Max. 192GB
Onboard Graphics
DisplayPort, HDMI
Supported Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports
LAN
1 x Realtek 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Expansion slots
1 x PCIe 4.0 x16 slot (supports x16 mode)
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Storage Interface
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports***
* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
*** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Supported USB
Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (3 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
* USB Type-C® power delivery output
Internal I/O connectors
N/A
H/W monitoring
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt™ (USB4®) header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Unique Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers
Bundled Software
N/A
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
