Product information

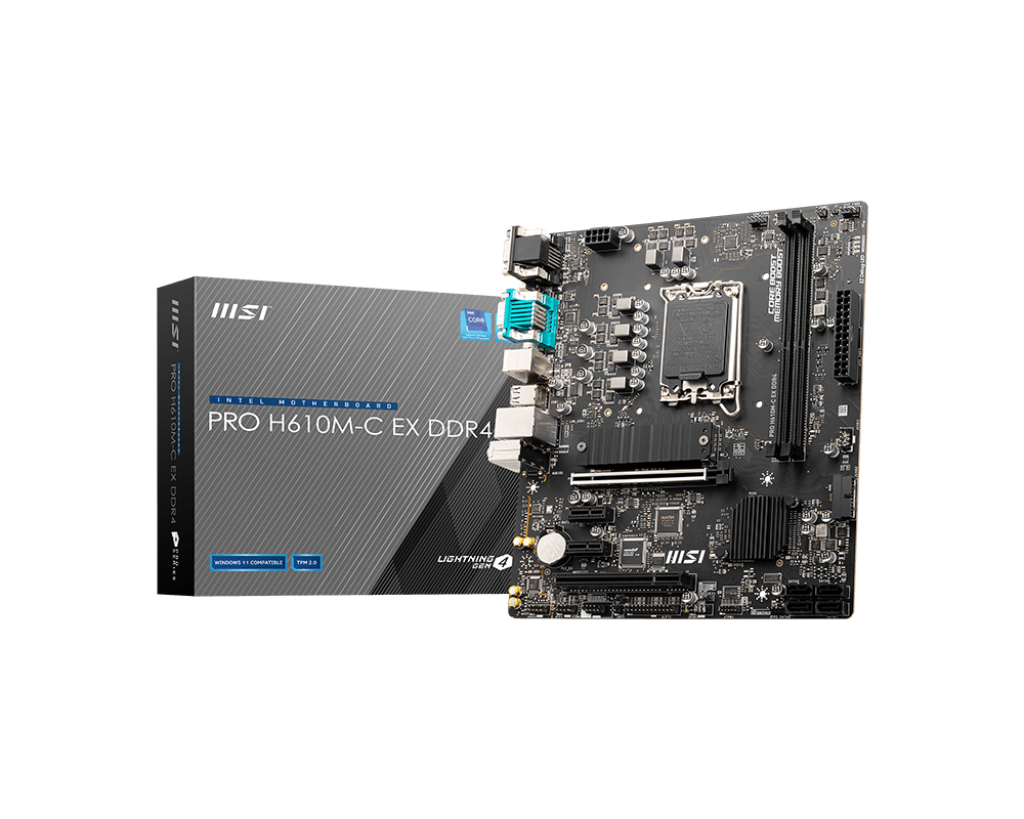

PRO H610M-C EX DDR4
Model Number: PRO-H610M-C-EX-DDR4
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
Model
PRO-H610M-C-EX-DDR4
Supported Chipset
Intel® H610 Chipset
Supported Memory
2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz
1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
1x DVI-D port, supporting a maximum resolution of 1920×1200 60Hz
Supported Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® RTL8111H 1Gbps LAN controller
Expansion slots
1x PCIe x16 slot,
PCI_E1 (from CPU Support up to PCIe 4.0 for 12th Gen Intel® CPU 2x PCIe x1 slots (from H610 chipset) ,
Support up to PCIe 3.0
1x PCI slot (from H610 chipset)
Storage Interface
Intel® H610 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (M2_1 slot)
Supports up to PCIe 3.0 x 4
Supports 2242/ 2260/ 2280 storage devices
Supported USB
Intel® H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 Type-A ports available through the internal connectors)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
Internal I/O connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connector (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x front panel audio connector
2x system panel connectors
1x parallel port connector
1x serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connecto
Operating System
Support for Windows® 10 64-bit
Form Factor
M-ATX
