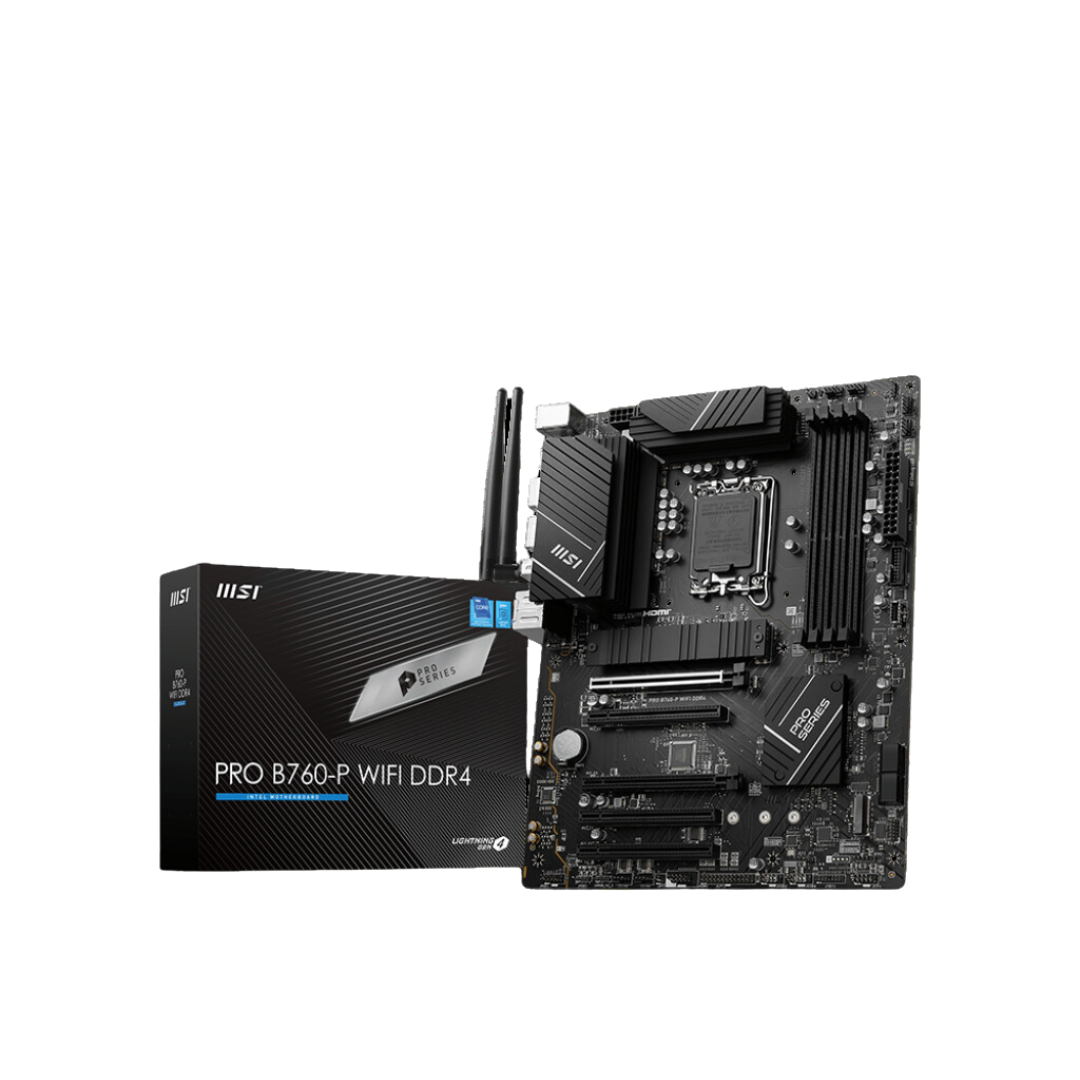

MSI PRO B760-P WIFI DDR4 Motherboard with Intel B760 Chipset and 2.5G LAN

Price
Rs. 18,599
Out of stock
MSI PRO B760-P WIFI DDR4 Motherboard with Intel B760 Chipset and 2.5G LAN

MSI PRO B760-P WIFI DDR4 Motherboard with Intel B760 Chipset and 2.5G LAN

Price
Rs. 18,599

Product information

Experience lightning-fast processing and seamless connectivity with the MSI PRO B760-P WIFI DDR4 motherboard. Powered by the INTEL B760 chipset, this motherboard is designed to support Intel® Core™ 14th, 13th, and 12th Gen Processors, as well as Intel® Pentium® Gold and Celeron® Processors. With a CPU socket LGA 1700, you can be assured of excellent performance and compatibility.

Memory is a crucial component of any high-performance system, and the MSI PRO B760-P WIFI DDR4 motherboard offers extensive memory support. With 4x DDR4 slots and a maximum memory capacity of 128GB, you have the flexibility to customize your memory configuration to suit your needs. The motherboard supports memory speeds of up to 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC), making it ideal for intense multitasking and demanding applications.

In terms of onboard graphics, the MSI PRO B760-P WIFI DDR4 motherboard features 1x HDMI™ port that supports HDMI™ 2.1 with a maximum resolution of 4K 60Hz, as well as 1x DisplayPort that supports DP 1.4 with a maximum resolution of 4K 60Hz. This provides you with the flexibility to connect multiple displays and enjoy stunning visual output.

The motherboard also boasts 5x PCI-E x16 slots, offering ample expansion options for additional hardware components. With PCIe 4.0 support, including M.2 connectors and SATA ports, you can take advantage of high-speed data transfer and storage capabilities.

Connectivity is a key feature of the MSI PRO B760-P WIFI DDR4 motherboard. It comes equipped with a Realtek RTL8125BG 2.5G LAN port, offering high-speed wired network connectivity. Additionally, the motherboard features Intel Wi-Fi 6E and Bluetooth 5.3 support, ensuring seamless wireless connectivity and networking options.

Audio is another area where the MSI PRO B760-P WIFI DDR4 motherboard excels. With the Realtek ALC897 Codec, it delivers 7.1-Channel High Definition Audio, providing an immersive and crystal-clear sound experience for your entertainment needs.

The motherboard also features a wide range of internal I/O connectors, including USB ports, headers for fans and cooling systems, RGB LED connectors, and more. This allows for easy integration of various components and peripherals to create a customized and powerful system.

With a compact ATX form factor, the MSI PRO B760-P WIFI DDR4 motherboard fits seamlessly into standard PC cases while offering ample space for efficient airflow and heat dissipation. It is also compatible with Windows 11 64-bit and Windows 10 64-bit operating systems, offering support for the latest software and technologies.

Overall, the MSI PRO B760-P WIFI DDR4 motherboard is a powerhouse of performance, connectivity, and customization. Whether you're a gamer, content creator, or power user, this motherboard provides the foundation for a high-performance and versatile PC system. Experience the future of computing with the MSI PRO B760-P WIFI DDR4 motherboard.

Model PRO B760-P
Supported Memory 4x DDR4, Maximum Memory Capacity 128GB,
Onboard Graphics HDMI 2.1 (4K 60Hz), DisplayPort 1.4 (4K 60Hz)
Supported Audio Realtek ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
LAN Realtek RTL8125BG 2.5G LAN
Wireless Communication module Intel Wi-Fi 6E, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/b/g/n/ac/ax, Supports Bluetooth 5.3, FIPS, FISMA
Expansion slots 5x PCI-E x16 slots (1x PCIe 4.0 from CPU, 1x PCIe 3.0 from Chipset, 1x PCIe 4.0 from Chipset, 2x PCIe 3.0 from Chipset)
Storage Interface 1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Supported USB 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 1x USB 3.2 Gen1 Type C (Front), 2x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Rear)
Internal I/O connectors 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
H/W monitoring N/A
BIOS N/A
Unique Features N/A
Bundled Software N/A
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
Form Factor ATX, 243.84mm x 304.8mm
