Product information

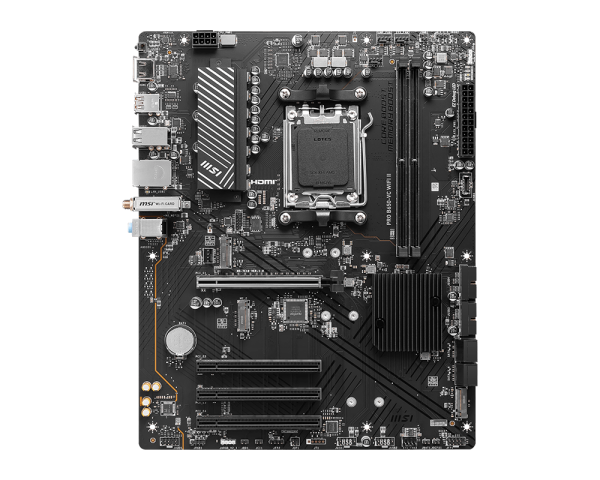

PRO B650-VC WIFI II
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Premium Thermal Solution: the PCH heatsink and Frozr AI Cooling are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
- 1G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Model
PRO B650-VC WIFI II
Supported Chipset
AMD B650
Supported Memory
2x DDR5
Onboard Graphics
1x HDMI
Supported Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
Realtek® 8111H Gigabit LAN
Wireless Communication module
AMD Wi-Fi 6E
Expansion slots
4x PCI-E x16 slot
• Supports x16/x1/x1/x1 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x1/x1/x1 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x1/x1/x1 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Interface
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

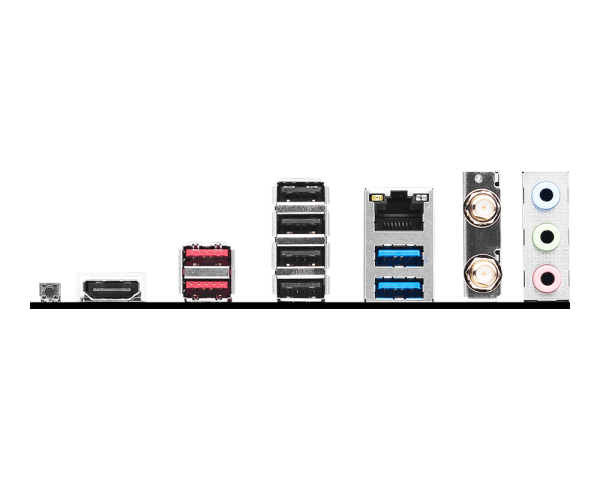

Supported USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
Internal I/O connectors
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
8x USB 2.0 ports
6x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
2x USB 10Gbps Type A ports
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX
243.84mmx304.8mm
