Model

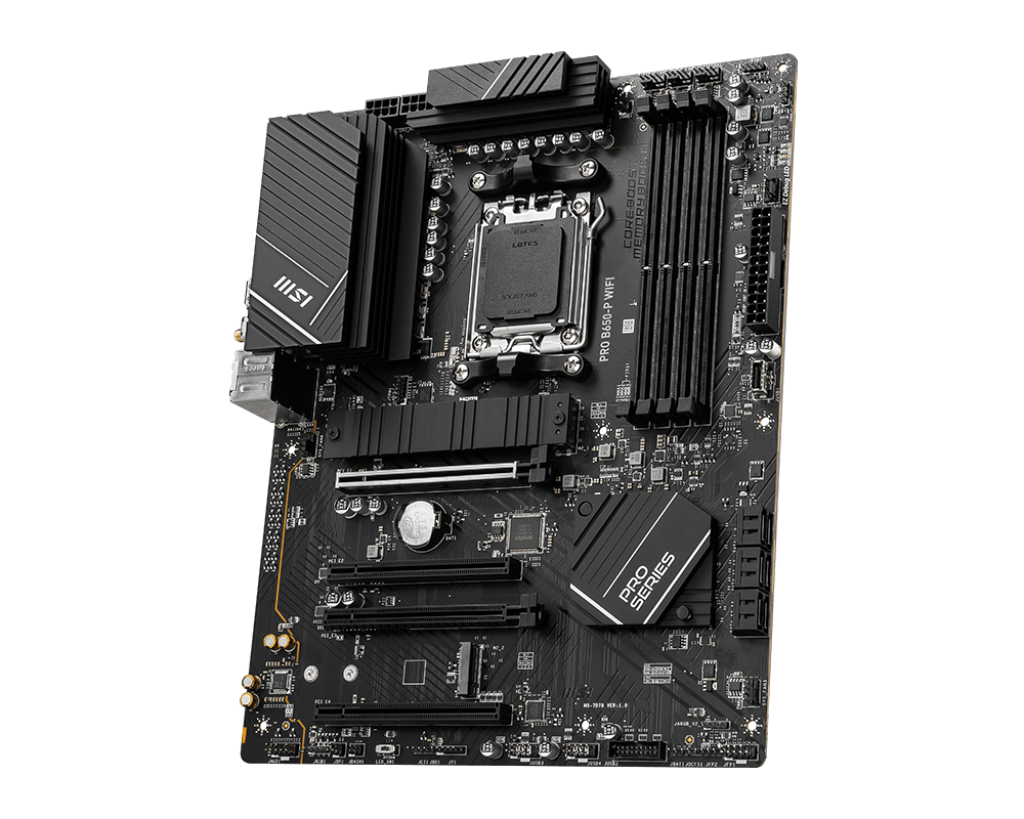

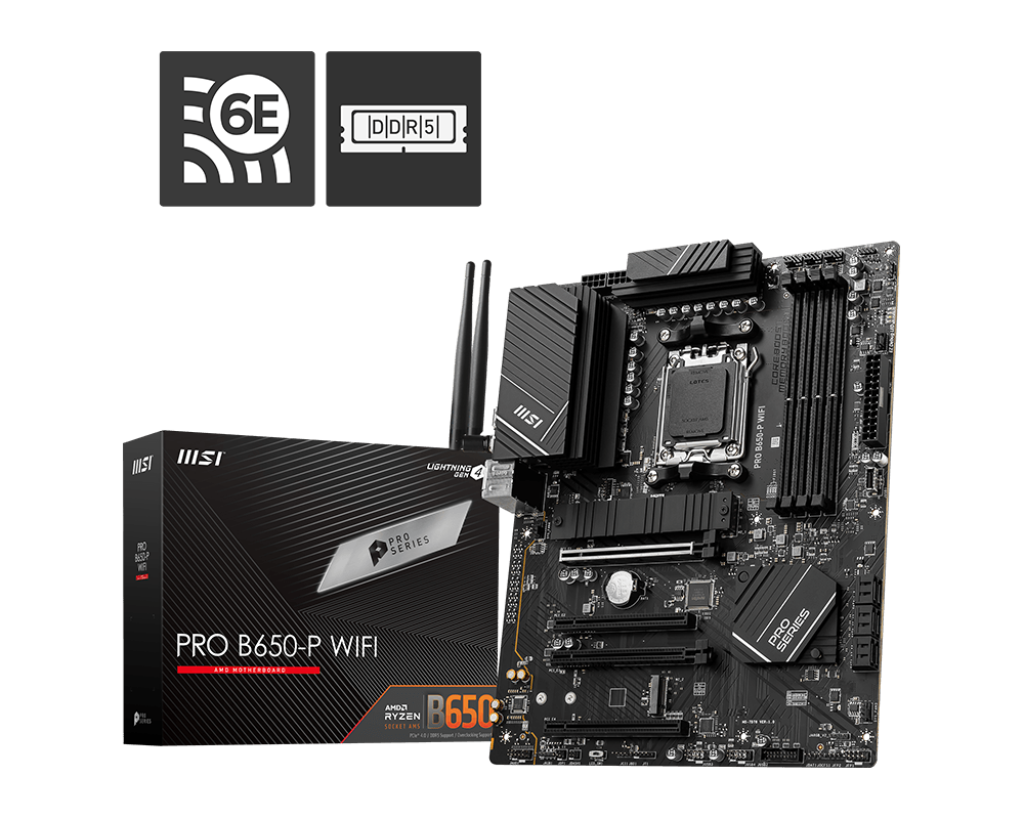

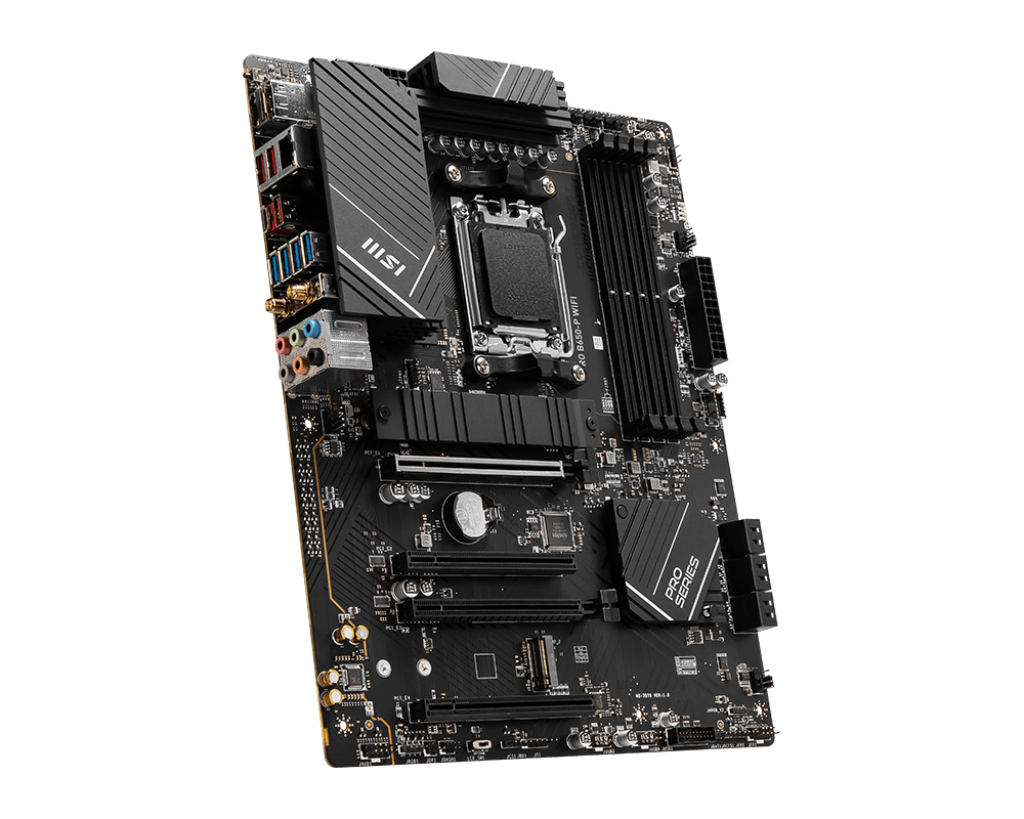

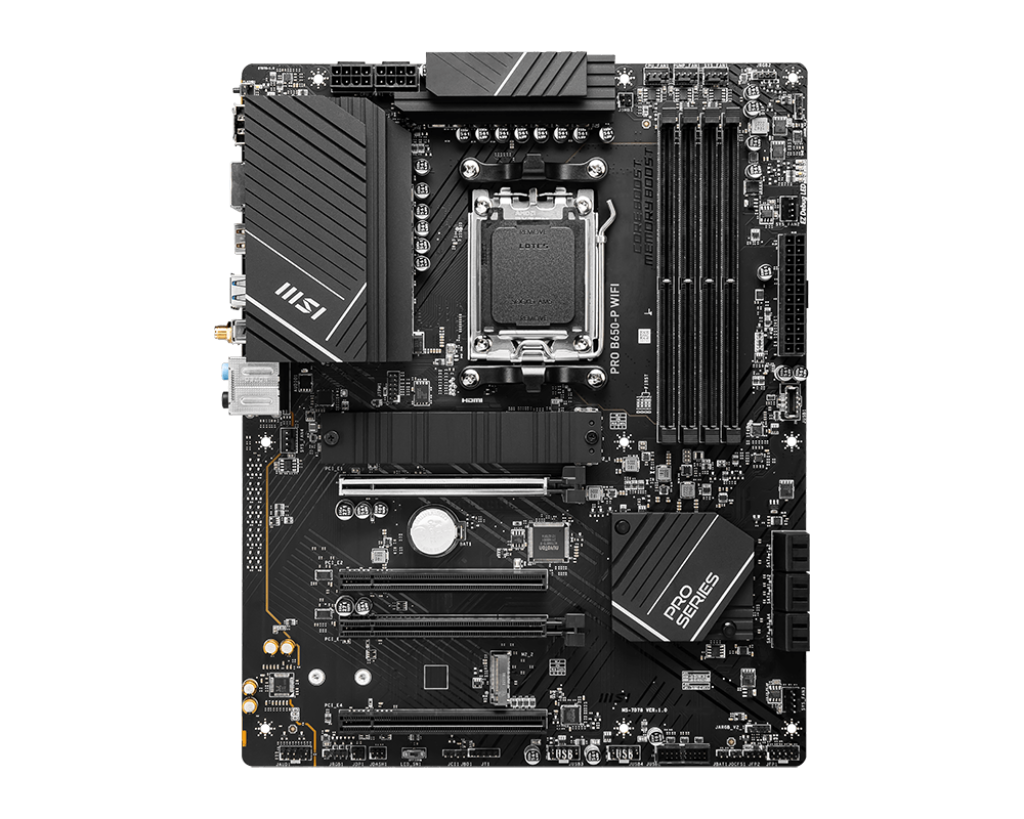

PRO B650-P WIFI
Supported Memory
DDR5
Onboard Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
Supported Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
Realtek® 8125BG 2.5G LAN
Wireless Communication module
Wi-Fi 6E
Expansion slots
4x PCI-E x16 slot
• Supports x16/x1/x4/x1 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x1/x4/x1 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x1/x4/x1 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Interface
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G

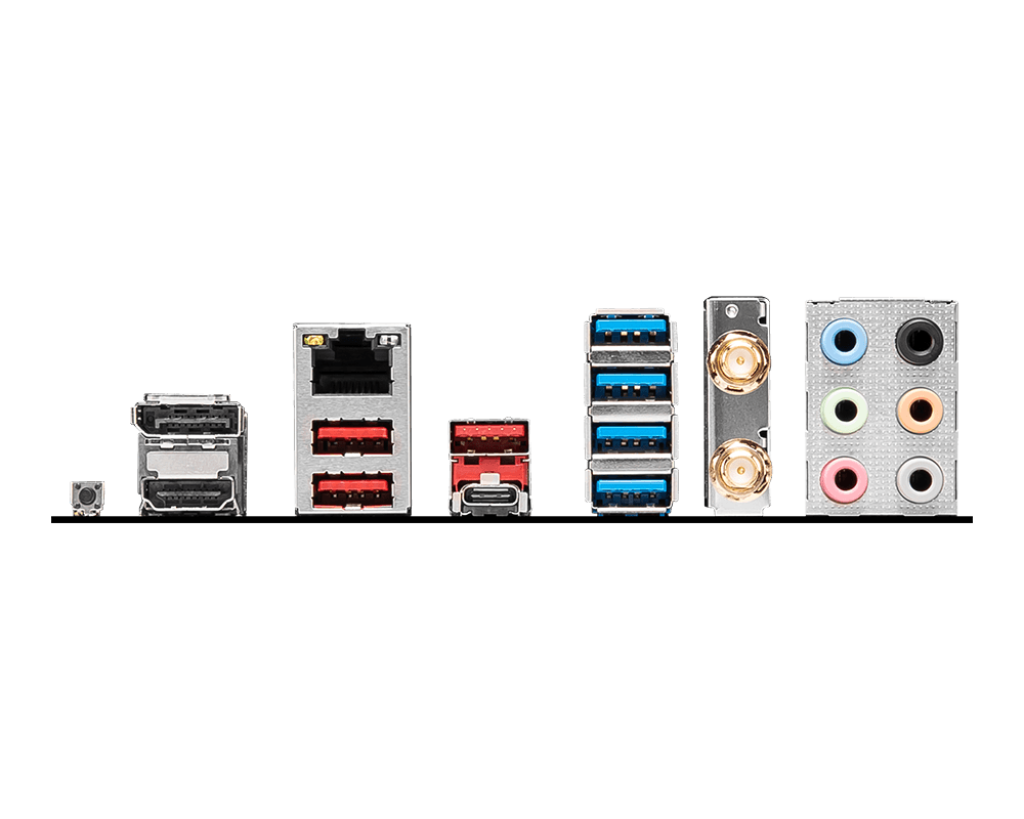

Supported USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX
243.84mmx304.8mm
