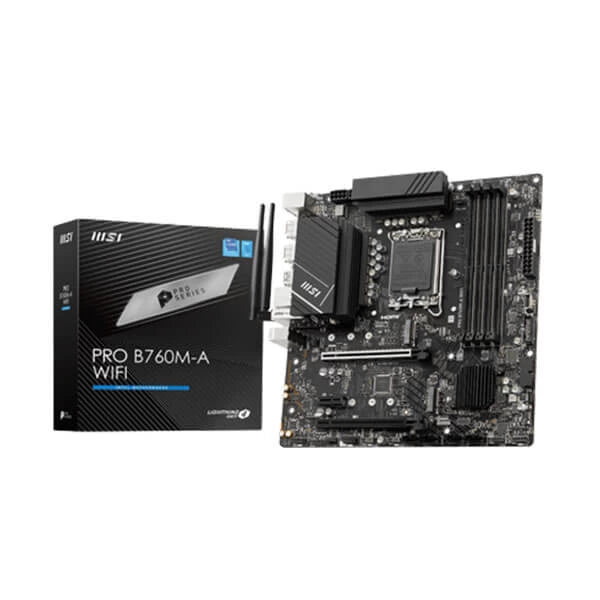

MSI Mainboard PRO B760M-A WIFI DDR5 Motherboard

Introducing the MSI Mainboard PRO B760M-A WIFI, a high-performance motherboard designed to support the latest Intel Core 14th/ 13th/ 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors. Equipped with the INTEL B760 chipset, this motherboard delivers exceptional power and reliability for a wide range of computing needs.

Featuring 4 DDR5 memory slots with a maximum capacity of 256GB, the MSI Mainboard PRO B760M-A WIFI supports memory speeds of up to DDR5 6800+ MHz (OC). With the ability to overclock to these impressive frequencies, you can experience enhanced system performance and responsiveness for demanding applications and multitasking.

For onboard graphics, the motherboard offers 2 HDMI 2.1 ports with a maximum resolution of 4K 60Hz, as well as 2 DisplayPort 1.4 ports with the same maximum resolution. These graphics capabilities provide the clarity and detail needed for immersive gaming and content creation.

The motherboard includes 2 PCI-E x16 slots, 1 PCI-E x1 slot, and supports PCIe 4.0 technology for high-speed data transfer and expansion capabilities. In terms of storage, the MSI Mainboard PRO B760M-A WIFI features 2 M.2 slots and 4 SATA 6G ports, allowing for flexible storage configurations and high-speed SSD support.

With support for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, you can configure your storage setup for optimal performance and data protection. The motherboard also provides a range of USB ports, including USB 2.0, USB 3.2 Gen1 Type A, and USB 3.2 Gen2 Type A and C ports for seamless connectivity.

The MSI Mainboard PRO B760M-A WIFI includes a Realtek RTL8125BG 2.5G LAN for high-speed wired networking, as well as Intel Wi-Fi 6E and Bluetooth 5.3 for wireless connectivity. The Wireless module is pre-installed in the M.2 slot and supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, with support for various Wi-Fi standards.

In terms of audio, the motherboard features a Realtek ALC897 codec for 7.1-Channel High Definition Audio, delivering rich and immersive sound for your entertainment and gaming needs.

The MSI Mainboard PRO B760M-A WIFI also includes a range of internal connectors for power, cooling, lighting, and more, as well as LED features such as EZ Debug LED for easy troubleshooting. The motherboard is compatible with Windows 11 64-bit and Windows 10 64-bit operating systems, providing support for the latest software and technologies.

Built in the mATX form factor, with dimensions of 243.84mmx243.84mm, the motherboard is compact yet capable, making it suitable for a wide range of PC builds and configurations.

With its impressive range of features and capabilities, the MSI Mainboard PRO B760M-A WIFI is a versatile and high-performance motherboard that can power your computing needs now and in the future. Whether you're a gamer, content creator, or power user, this motherboard is designed to deliver exceptional performance and reliability.
