Product information

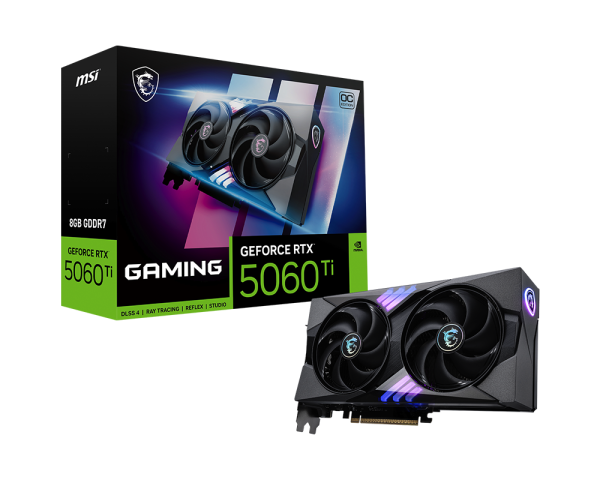

GeForce RTX™ 5060 Ti 8G GAMING OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clocks:
Extreme Performance: 2662 MHz (MSI Center)

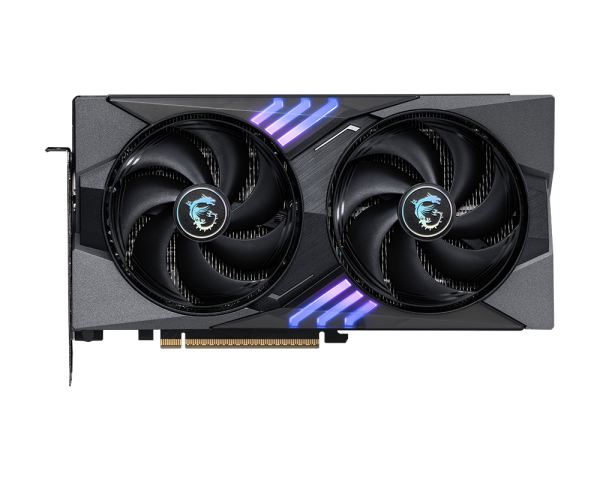

Boost: 2647 MHz - TWIN FROZR 10: Experience superior cooling and quieter performance with MSI's enhanced fan blade design.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

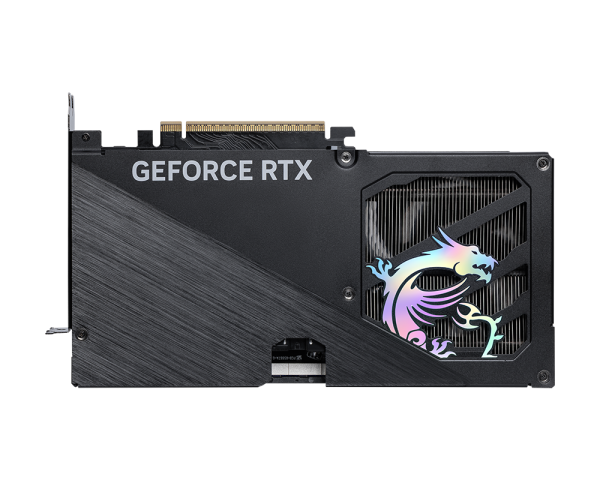

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Model
G506T-8GC
Chipset
GeForce RTX™ 5060 Ti
GPU
NVIDIA GeForce RTX™ 5060 Ti
PCI Express
PCI Express Gen 5 x16 (uses x8)
Boost Clock
2647 MHz
Memory Clock
28 Gbps
Memory Size
8GB
Memory Interface
128-bit
Memory Type
GDDR7
Direct X Support
12 Ultimate

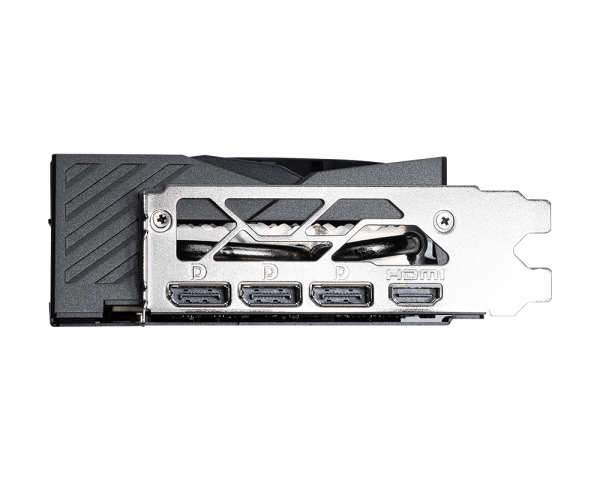

Ports
DisplayPort x 3 (v2.1b)
HDMI™ x 1
GPU Core (CUDA CORE)
4608 Units
