Product information
GeForce RTX™ 5060 Ti 16G VANGUARD SOC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clock:
Extreme Performance: 2707 MHz (MSI Center)
Boost: 2692 MHz - TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.

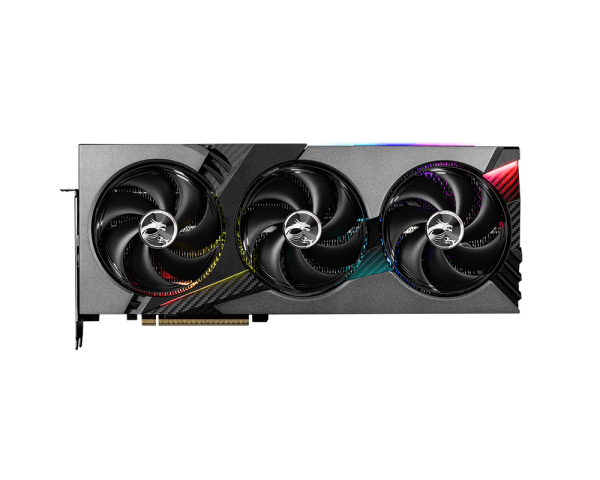

- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
- Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

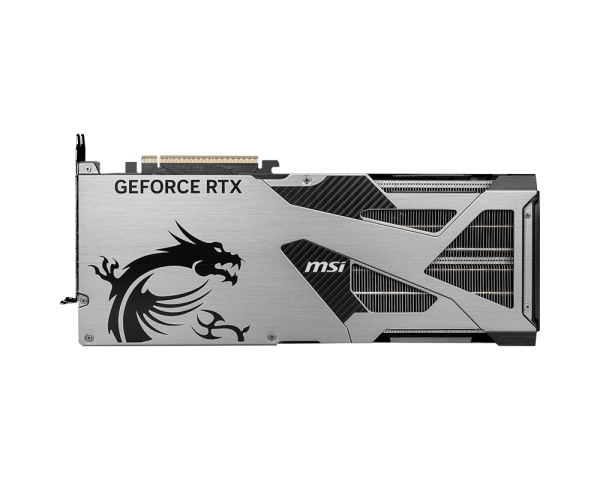

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
Model
G506T-16VGS
Chipset
GeForce RTX™ 5060 Ti
GPU
NVIDIA GeForce RTX 5060 Ti
PCI Express
PCI Express Gen 5 x16
Boost Clock
2692 MHz
Memory Clock
28 Gbps
Memory Size
16GB
Memory Interface
128-bit
Memory Type
GDDR7
Direct X Support
12 Ultimate
Ports

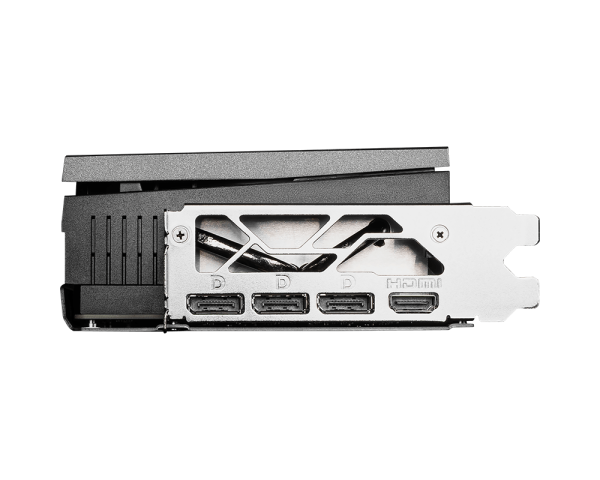

DisplayPort x 3 (v2.1b)
HDMI™ x 1
GPU Core (CUDA CORE)
4608 Units
