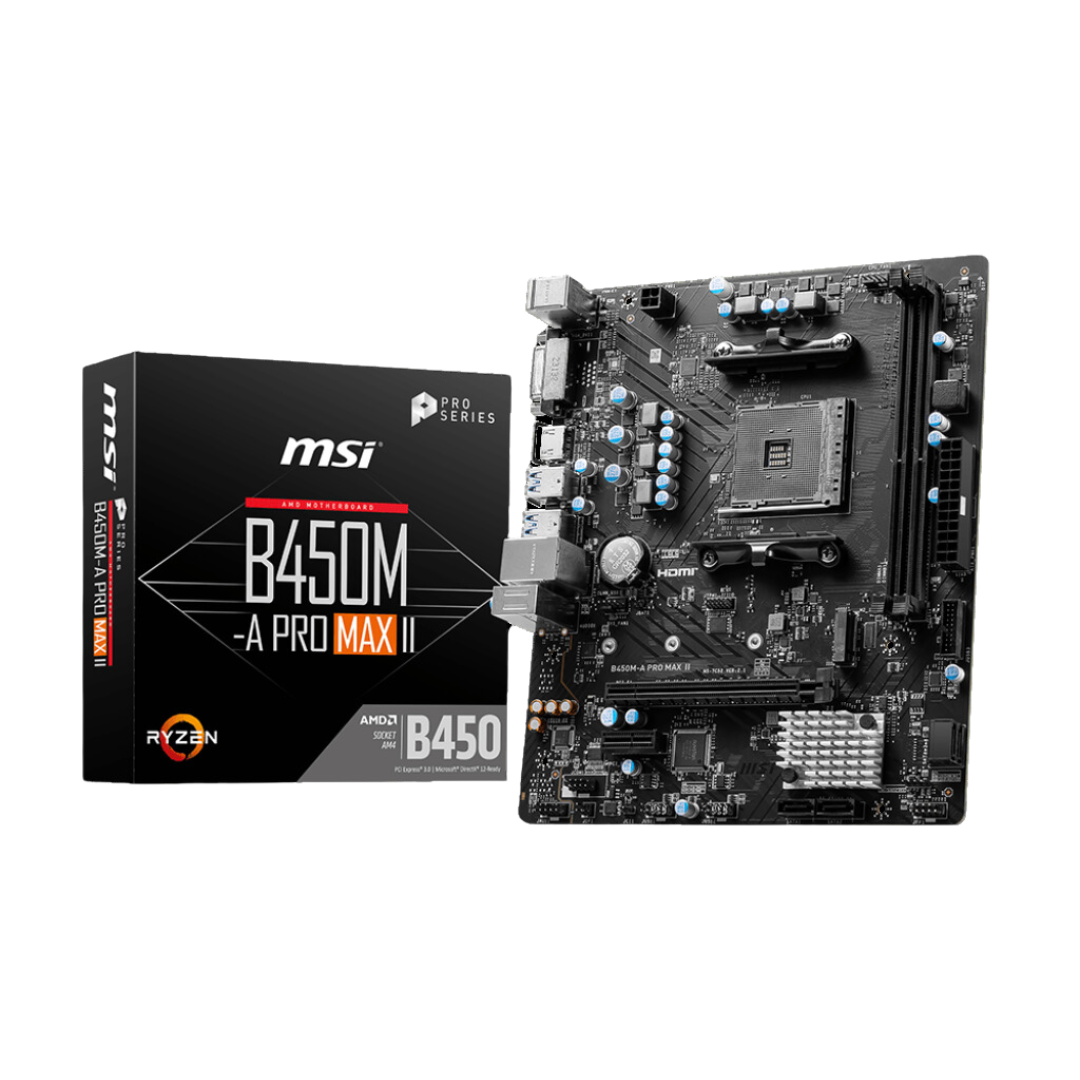

MSI B450M-A PRO MAX II AM4 Motherboard with Ryzen 5000 Series Support

The MSI B450M-A PRO MAX II Motherboard is a high-performance motherboard designed to support the latest AMD Ryzen™ processors. With its robust feature set and versatile connectivity options, this motherboard is an ideal choice for both casual users and PC enthusiasts looking to build a reliable and powerful system.

Equipped with the AMD B450 chipset, this motherboard delivers excellent performance and reliability for a wide range of computing tasks. It supports a variety of AMD Ryzen™ processors, including the 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series, and 1000 Series Desktop Processor, as well as Athlon™ with Radeon™ Vega Graphics desktop processors. The Socket AM4 design ensures compatibility with a wide range of modern and upcoming processors, making it a future-proof choice for any build.

The motherboard features 2x DDR4 memory slots with a maximum capacity of 64GB, supporting DDR4 memory speeds ranging from 2667MHz to 4133MHz (by A-XMP OC MODE). It also supports dual-channel mode and non-ECC UDIMM memory, as well as ECC UDIMM memory in non-ECC mode, providing flexibility for different memory configurations and requirements.

For graphics output, the motherboard is equipped with 1x HDMI™ port supporting HDMI 2.0b with a maximum resolution of 4K 60Hz, as well as 1x DVI port supporting a maximum resolution of 1920x1200 60Hz. This allows users to connect multiple displays and enjoy high-quality visuals for gaming, content creation, and multimedia tasks.

In terms of expansion slots, the motherboard features 1x PCI-E x16 slot and 1x PCI-E x1 slot, with support for PCIe 3.0 and PCIe 2.0, respectively. This provides ample room for installing additional expansion cards such as graphics cards, networking cards, and storage expansion cards.

Storage options include 1x M.2 slot with support for PCIe 3.0 x4 and SATA mode, as well as 4x SATA 6G ports for high-speed data transfer and storage connectivity. The motherboard also supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, allowing users to configure their storage for data redundancy and performance optimization.

Connectivity options are plentiful, with 2x USB 2.0 ports, 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, and 2x USB 3.2 Gen1 Type A ports for a wide range of peripheral devices. The Realtek 8125 2.5Gbps LAN controller provides high-speed networking capabilities, while the Realtek ALC897 Codec delivers 7.1-channel high-definition audio for immersive gaming and multimedia experiences.

The motherboard also features a comprehensive array of internal IO connectors, including power connectors, fan headers, front panel connectors, USB ports, and more, for easy installation and customization of the system.

With support for Windows 11 64-bit and Windows 10 64-bit, the MSI B450M-A PRO MAX II Motherboard is ready to run the latest operating systems and software, ensuring compatibility and performance for a wide range of applications.

Measuring at mATX200mmx236mm, this motherboard is designed to fit into a wide variety of PC cases, making it suitable for compact and mid-sized builds.

Overall, the MSI B450M-A PRO MAX II Motherboard offers a compelling combination of performance, features, and expandability, making it an excellent choice for users seeking a reliable and versatile foundation for their PC build. Whether for gaming, content creation, or everyday computing, this motherboard is sure to deliver a seamless and immersive experience.
