Product information

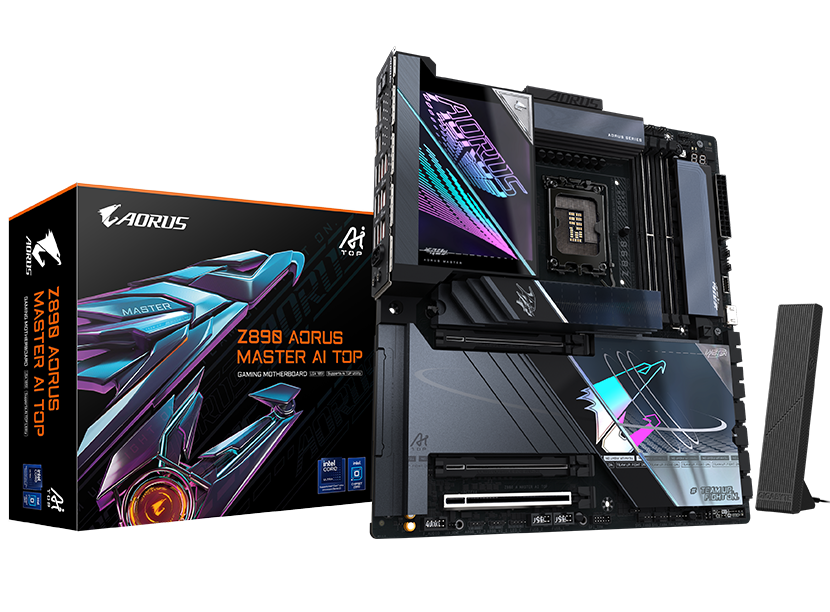

Gigabyte Z890 AORUS MASTER AI TOP Motherboard
Key Features :
- Training your own AI on your desk
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 20+1+2 phases VRM solution
- Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
- Next-gen Connectivity : Dual Thunderbolt™ 4 Type-C with DP-Alt
- Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perf drive : Provides optimal and customized BIOS pre-set profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- Reinforced Overall Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
- DDR Wind Blade : Enhanced Active Cooling for Memory Modules
- DTS:X® Ultra Audio : ESS ES9280 and ESS SABRE Hi-Fi 9118 DAC
- M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
Model
Z890 AORUS MASTER AI TOP
Supported Chipset
Intel® Z890 Express Chipset
Supported Memory
DDR5
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support
Supported Audio
ESS ES9280 chip (rear panel audio)
- Support for DTS
LAN
2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 7 BE200NGW
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
Expansion slots
CPU
Storage Interface
CPU
Supported USB
CPU
Internal I/O connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
H/W monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 28.5cm
