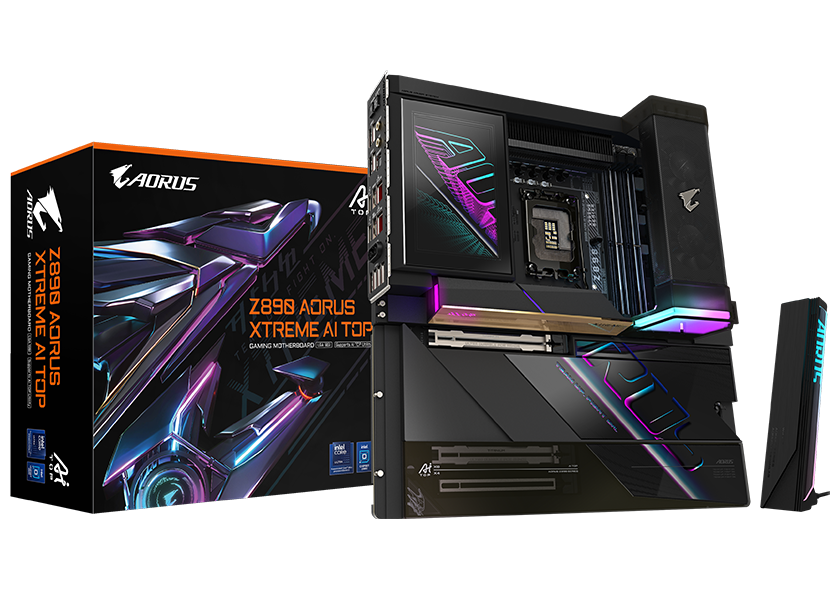

Gigabyte Z890 AORUS EXTREME AI TOP Motherboard

Click to open expanded view

Gigabyte Z890 AORUS EXTREME AI TOP Motherboard

Price: Rs. 130,099

In stock and ready for shipping

Gigabyte Z890 AORUS EXTREME AI TOP Motherboard

Price: Rs. 130,099

Product information

Gigabyte Z890 AORUS EXTREME AI TOP Motherboard

Key Features :

Training your own AI on your desk
Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 22+1+2 phases VRM solution
Ultimate Scalibility: 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
Next-gen Connectivity: Dual THUNDERBOLT™ 5 and THUNDERBOLT™ 4 Type-C with DP-Alt
Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with RGB
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI SNATCH: Auto-Overclocking Software by AI models
AI Perf drive: Provides optimal and customized BIOS pre-set profile for users
Premium Compatibility: 4*DDR5 with XMP Memory Module Support
Reinforced Overall Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
DDR Wind Blade XTREME: Enhanced Active Cooling for Memory Modules
DTS:X® Ultra Audio: ESS ES9280A DAC and ESS ES9080A with Front Essential USB DAC Bundled
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HW info for real-time monitoring on CPU power phases
Titanium PCIe UD Slot X: PCIe 5.0 x16 slot with titanium for ultimate protection of graphics cards
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability

Model Z890 AORUS XTREME AI TOP

Supported Chipset Intel® Z890 Express Chipset

Supported Memory DDR5

Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller

Supported Audio 1 ESS ES9280AC DAC chip+2 ESS ES9080 chips DTS® Sound Unbound™ High Definition Audio 2-channel Support for S/PDIF Out

LAN 2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps)

Wireless Communication module Intel® Wi-Fi 7 BE200NGW - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard

Expansion slots CPU

Storage Interface CPU

Supported USB Chipset+Intel® Thunderbolt™ 5 Controller

Internal I/O connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable) 1 x noise detection header 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable) 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x Thunderbolt™ 4 connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable) 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers

H/W monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control

BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software

Operating System Support for Windows 11 64-bit (version 24H2 or later)

Form Factor E-ATX Form Factor; 30.48cm x 30.5cm

Compare with similar items

Techincal Specifications
	Gigabyte Z890 AORUS EXTREME AI TOP MotherboardRs. 130,099.00 View details
Model	Z890 AORUS XTREME AI TOP
Supported CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU
Supported Chipset	Intel® Z890 Express Chipset
Supported Memory	DDR5
Onboard Graphics	Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
Supported Audio	1 ESS ES9280AC DAC chip+2 ESS ES9080 chips DTS® Sound Unbound™ High Definition Audio 2-channel Support for S/PDIF Out
LAN	2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps)
Wireless communication module	Intel® Wi-Fi 7 BE200NGW - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard
Expansion slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2L_SB) - 4 x SATA 6Gb/s connectors
Supported USB	Chipset+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel Support up to 80Gbps with Thunderbolt devices Support up to 40Gbps with USB4 devices *Support up to 20Gbps with USB 3.2 devices CPU: - 1 x USB4® USB Type-C® port onboard - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+1 USB 3.2 Gen 2 Hub: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+1 USB 3.2 Gen 1 Hub: - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+1 USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable) 1 x noise detection header 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable) 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x Thunderbolt™ 4 connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable) 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit (version 24H2 or later)
Form Factor	E-ATX Form Factor; 30.48cm x 30.5cm
