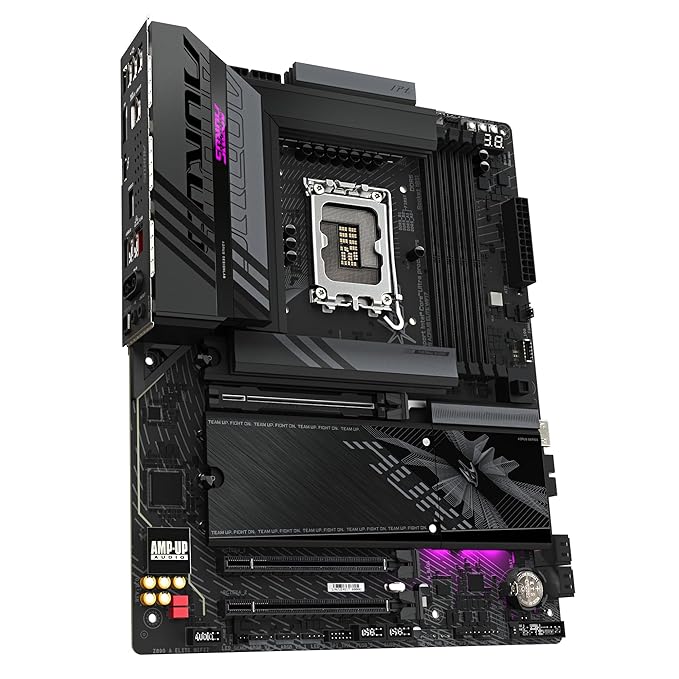

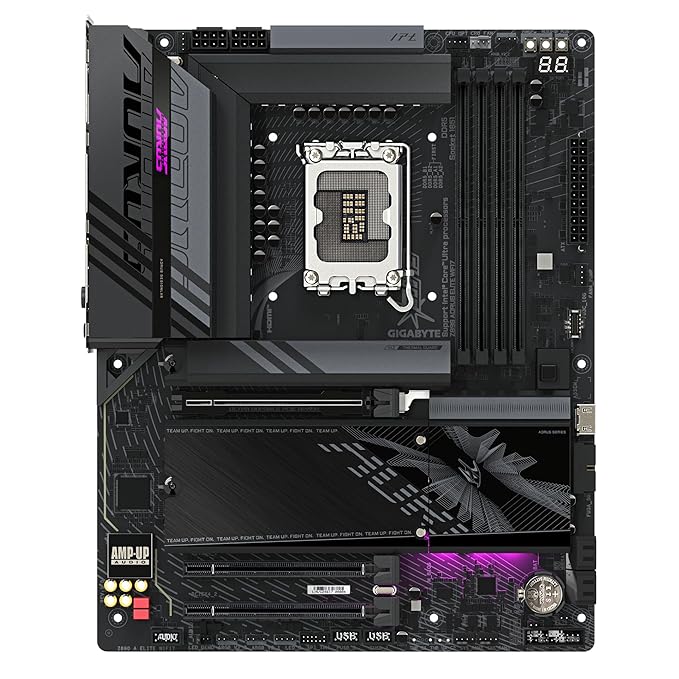

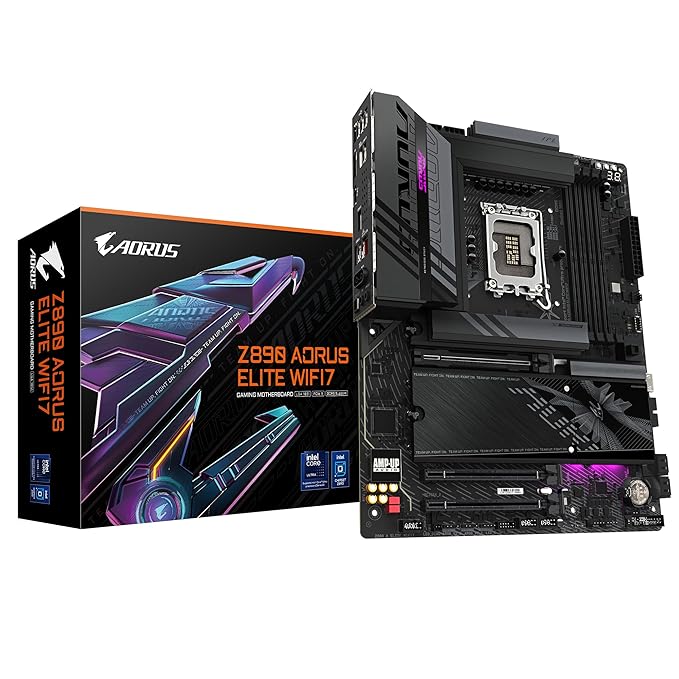

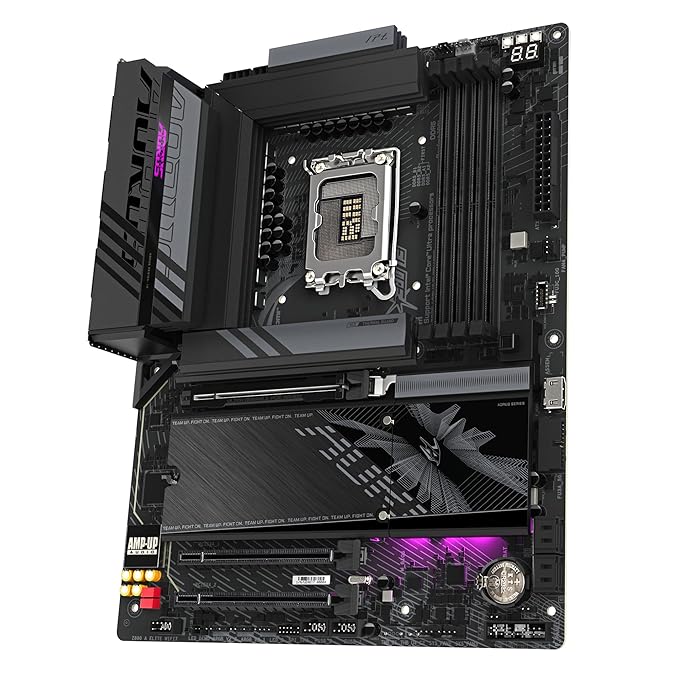

Gigabyte Z890 AORUS Elite WiFi7 Motherboard
Built to push the boundaries of next-gen computing, the Z890 AORUS ELITE WIFI7 motherboard is engineered for enthusiasts, gamers, and creators demanding top-tier performance, cutting-edge connectivity, and unmatched reliability.
Powered by support for Intel® Core™ Ultra (Series 2) processors, it features a robust digital twin 16+1+2 phase VRM solution, ensuring ultra-stable power delivery even under extreme workloads. Its advanced D5 Bionic Corsa architecture and 4×DDR5 DIMM slots with XMP support unlock infinite memory performance and compatibility with high-frequency modules.
To simplify setup and maintenance, the board includes EZ-Latch Plus and EZ-Latch Click for screwless PCIe and M.2 installations. Sensor Panel Link provides an onboard video port for easy in-chassis display setups, while AI Perfdrive delivers optimized BIOS profiles tailored to your usage.
Connectivity is future-proofed with Wi-Fi 7 and 2.5GbE LAN, accompanied by an EZ-Plug antenna mount for quick installation. Storage performance is equally advanced, featuring four M.2 slots, including a blazing-fast PCIe 5.0 x4 slot, supported by Thermal Guard L and VRM Thermal Armor Advanced for efficient heat management.
Experience high-end audio fidelity with the ALC1220 codec and WIMA audiophile capacitors, while a Thunderbolt™ 4 Type-C port with DisplayPort Alternate Mode offers high-speed I/O and multi-display capability.
The board also boasts PCIe UD Slot X, a reinforced PCIe 5.0 x16 slot with 10× strength for GPU mounting, plus a metal backplate for enhanced structural durability.
From its customizable BIOS with multi-theme UI and AIO fan control, to real-time CPU phase monitoring via HWiNFO, the Z890 AORUS ELITE WIFI7 is engineered to deliver elite performance in every build.
Model
Z890 AORUS ELITE WIFI7
Supported Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Onboard Graphics
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Supported Audio
Realtek® ALC1220 CODEC
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Expansion slots
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset
Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset
Supported USB

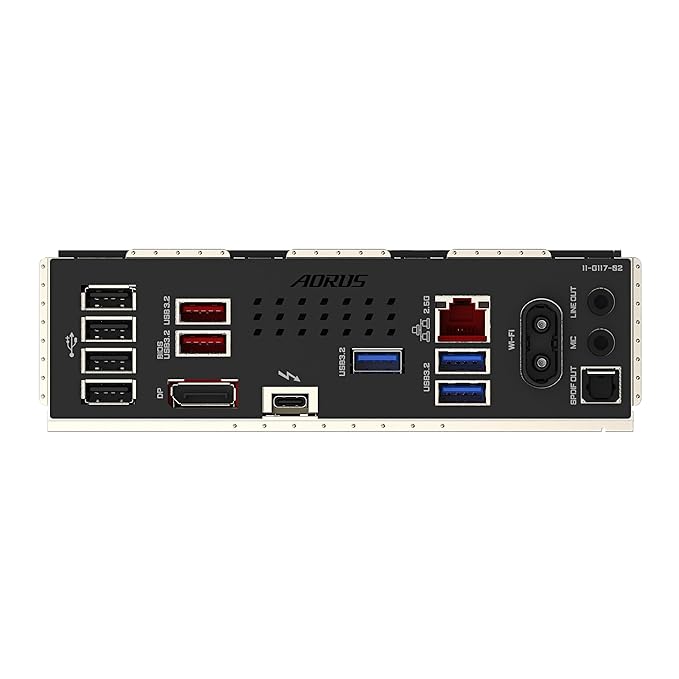

- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices
Chipset
Internal I/O connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
(Note) Actual support may vary by CPU.
H/W monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
