Product information

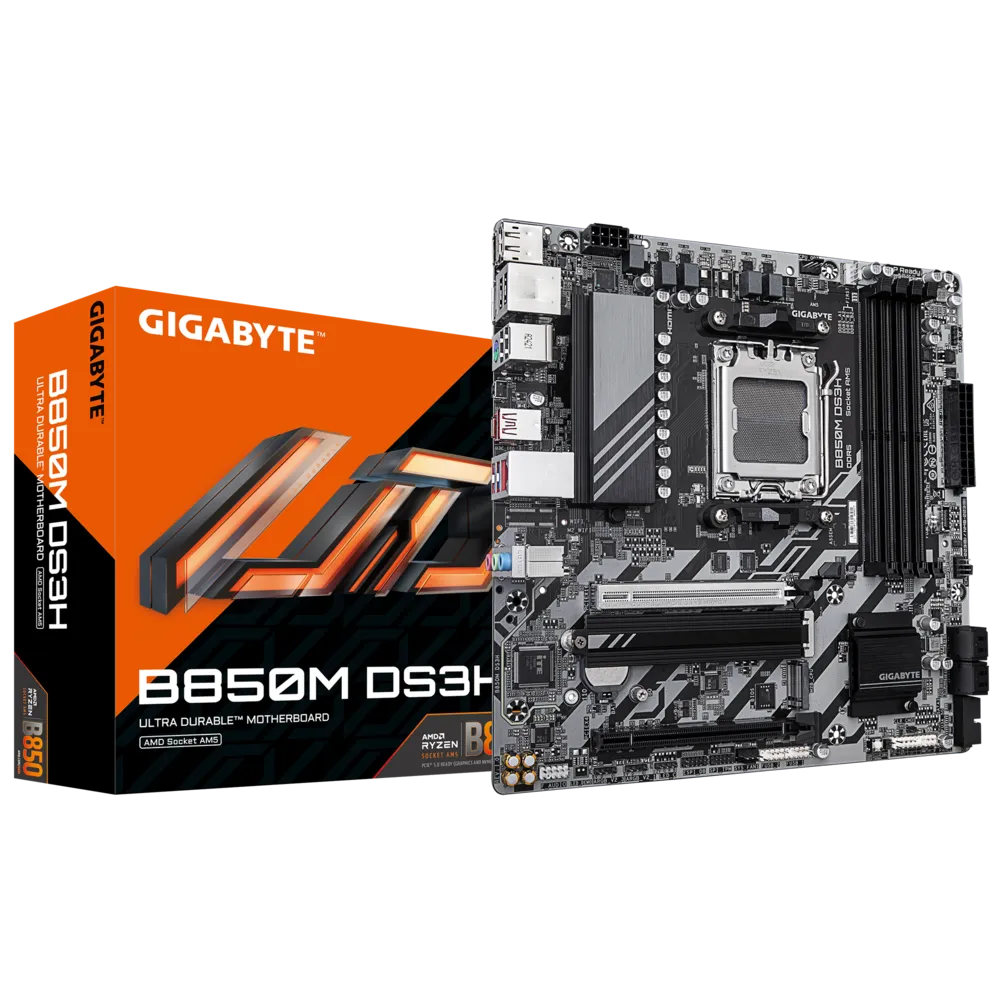

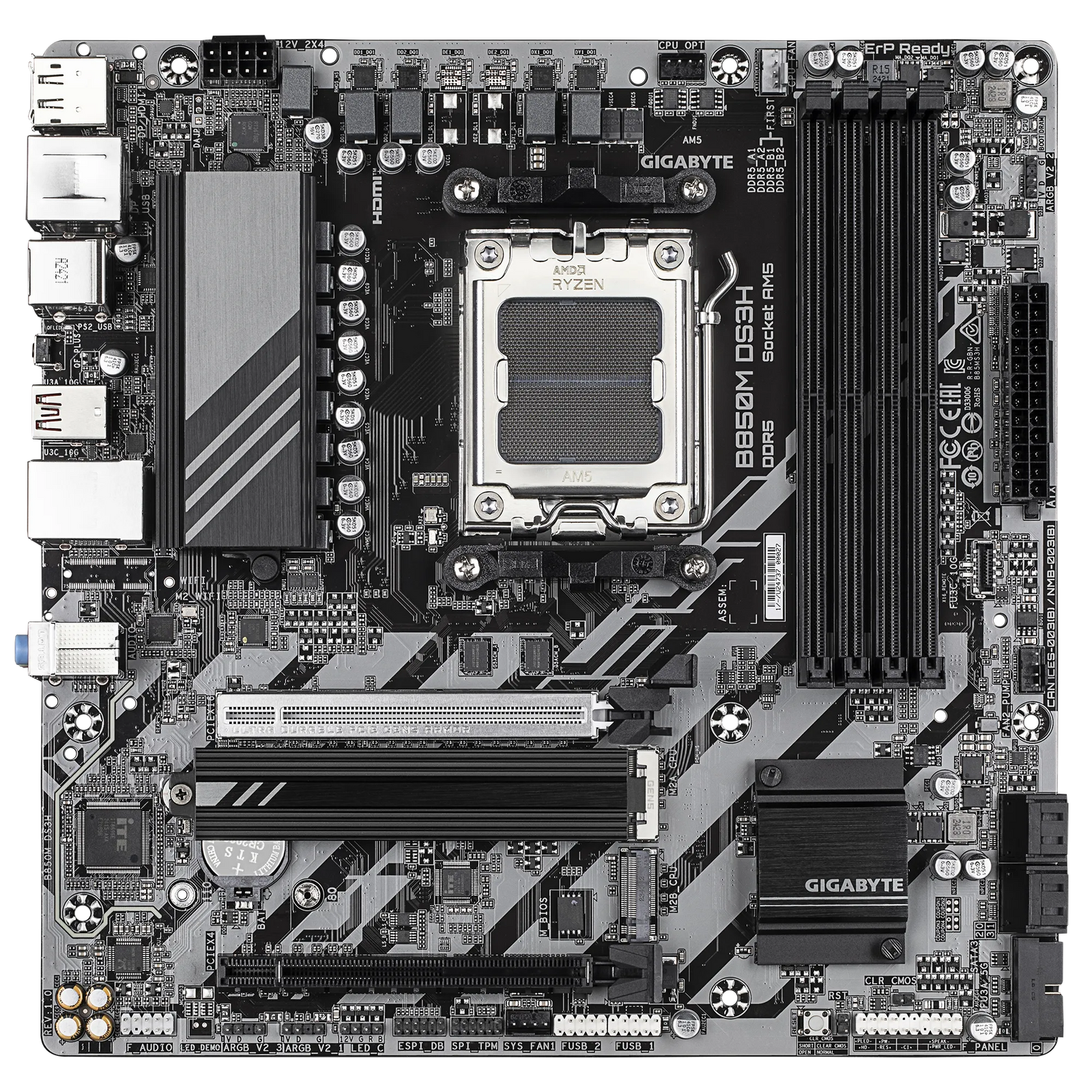

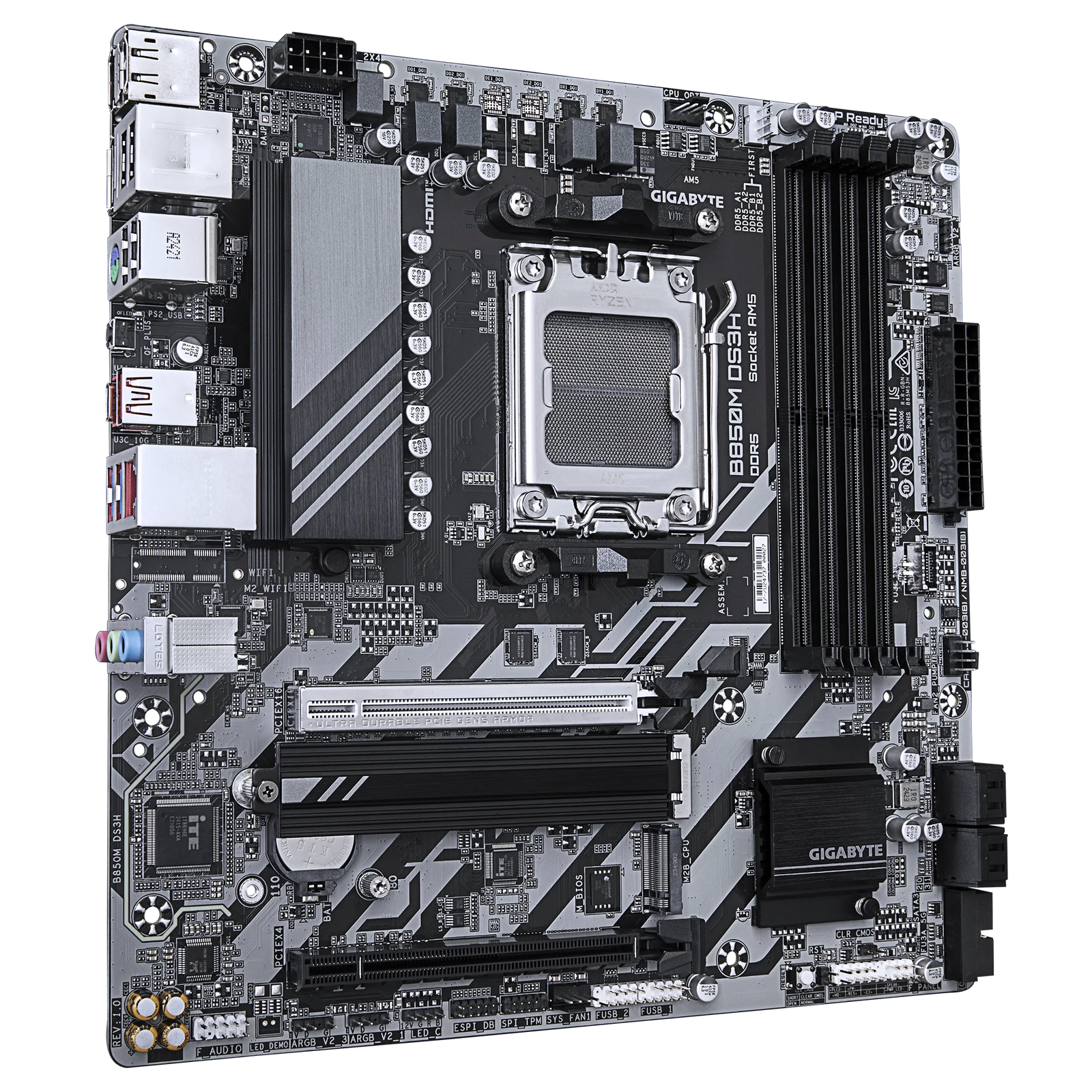

Gigabyte B850M DS3H Free with WIFI6 Card Motherboard
Key Features
- X3D Turbo Mode : Unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- M.2 EZ-Latch Plus : screwless installation for M.2 SSDs
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 slot
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : 2*DP, HDMI
Model
B850M DS3H
Supported Memory
DDR5
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support
Supported Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
Supported USB
CPU
Internal I/O connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
H/W monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Compare with similar items
 Gigabyte B850M DS3H MotherboardRs. 13,570.00 View details | |
|---|---|
| Techincal Specifications | |
Model |
|
Supported Memory |
|
Onboard Graphics |
|
Supported Audio |
|
LAN |
|
Expansion slots |
|
Storage Interface |
|
Supported USB |
|
Internal I/O Connectors |
|
H/W Monitoring |
|
BIOS |
|
Unique Features |
|
Operating System |
|
Form Factor |
|
