Product information

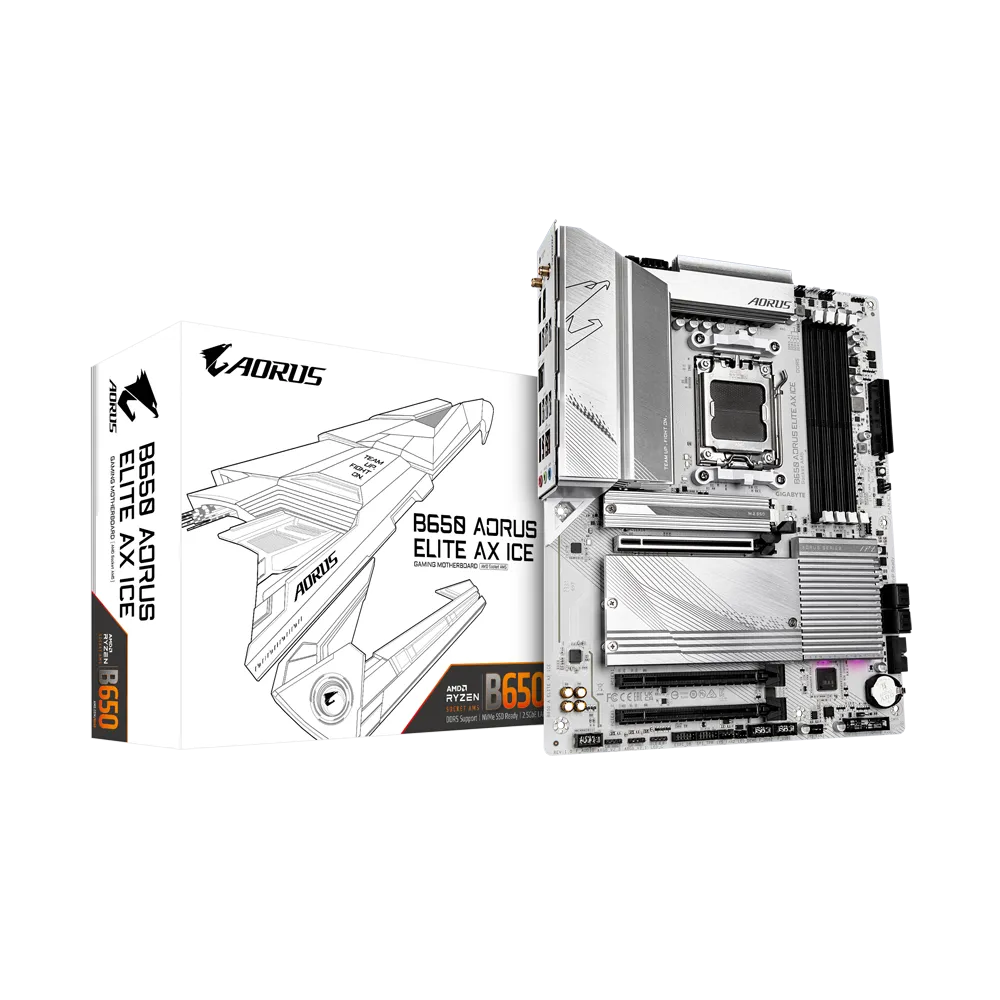

Gigabyte B650 AORUS Elite AX Ice Motherboard
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Superfast Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E
- Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Model
B650 AORUS Elite AX Ice
Supported Memory
DDR5
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support
Supported Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
Supported USB
'- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub
Internal I/O connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
H/W monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
