Product information
GAMDIAS HELIOS P2-1000G Reliable 1000W PSU for High Performance Gaming Builds
• Fully Modular
• 1000W 80 Plus Gold
• ATX 3.1 & PCIe Gen 5.1 Ready
• Native 12VHPWR Cable
• High Quality Capacitor
• Support C6/C7 Power State
• Automatic Fan Speed Optimizing According to Temperature
• Full DC-DC, LLC Resonant Circuit Design
• Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP

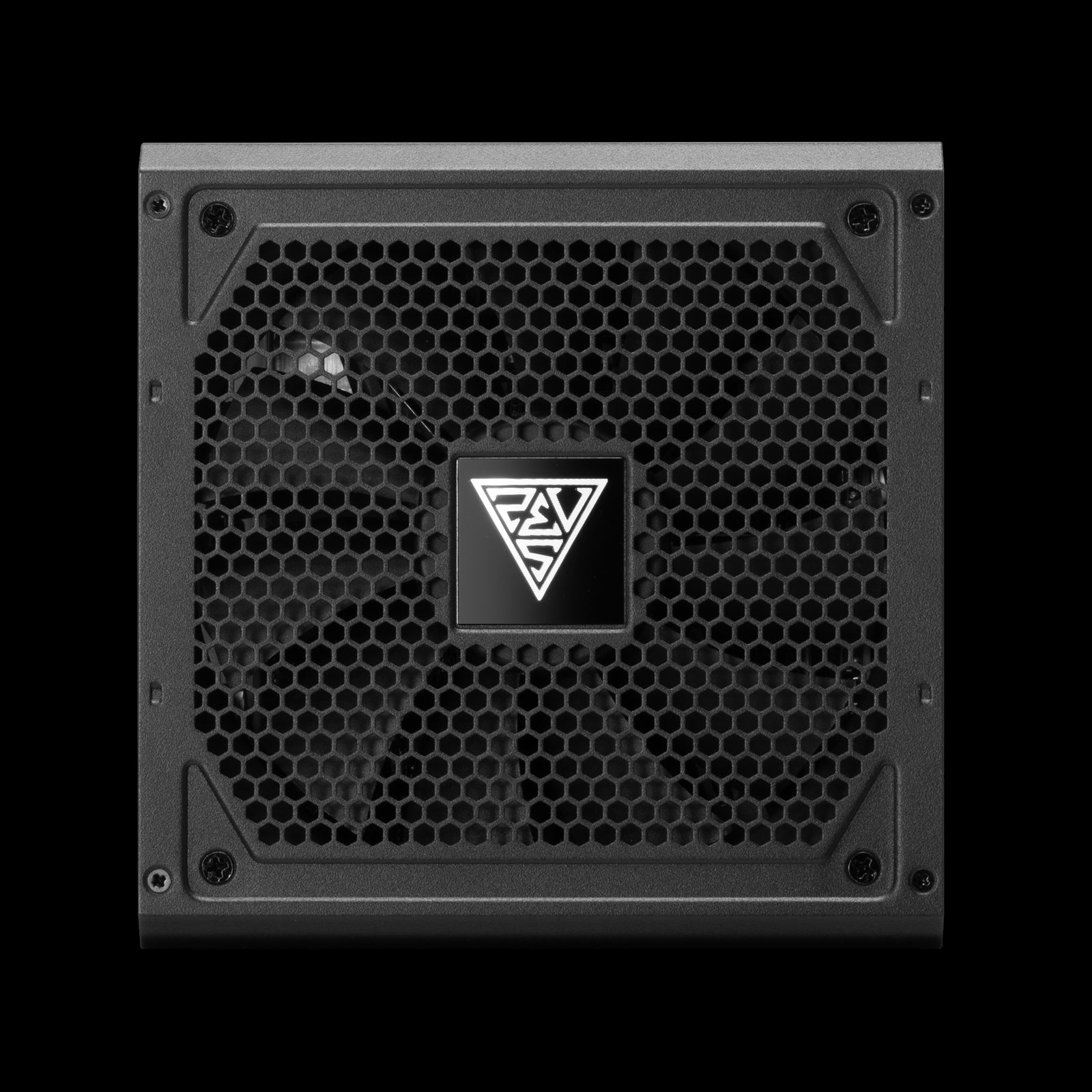

The HELIOS P2-1000G is a fully modular, next-generation power supply unit with 80 Plus Gold certification. It supports ATX 3.1 and PCIe Gen 5.1 standards, features high-quality capacitor, and includes a 135mm fan to ensure quiet operation while delivering consistent, reliable performance.
Designed to meet 80 PLUS Gold level, providing stable power output up to 92% efficiency at 50% load reducing carbon footprint and power consumption.
The native 16 PIN (12VHPWR) PCIe connector can deliver up to 600W for PCIe 5.1 graphics cards, providing powerful and stable performance and allowing the PSU to natively run high power GPUs.
Model
GAMDIAS HELIOS P2-1000G 80 PLUS GOLD 3.0
Wattage
1000W
Efficiency
92% efficiency
Modular
Fully Modular
Form Factor
ATX12V v3.1

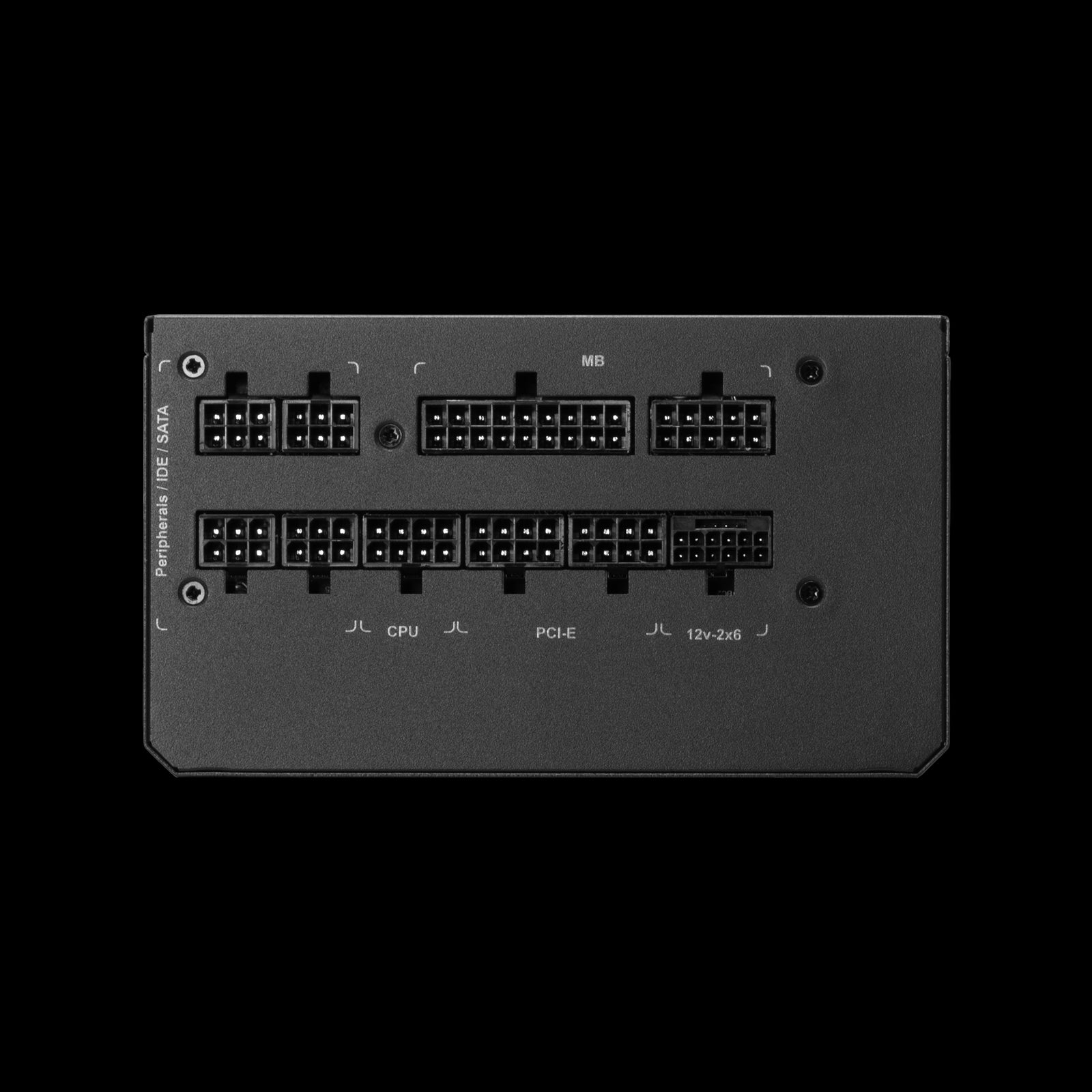

Connectors
Main Power 1 (24 Pin)
CPU 2 (4+4 Pin)
PCI-E 4 (6+2 Pin)
12VHPWR 1 (12+4 Pin)
SATA 12 (5 Pin)
Molex 4 (4 Pin)
Floppy 1 (4 Pin)
Protections
OVP / UVP / OPP / SCP / OCP / OTP
Dimensions
150 x 150 x 86 mm
Compare with similar items
 | |
|---|---|
| Techinical Specifications | |
Model |
|
Wattage |
|
Efficiency |
|
Modular |
|
Form Factor |
|
Connectors |
|
Protections |
|
Dimensions |
|
