Product information
GAMDIAS HELIOS M1-650B Efficient 650W PSU for Gaming PCs
• 650W 80 Plus Bronze
• Deliver up to 85% Efficiency
• High Quality Capacitors Provide Superb Performance and Reliability
• Black Flat Cables
• 1 x (4+4P) EPS
• Compatible with ATX12V v2.4
• Support C6/C7 Power State
• Automatic Fan Speed Optimization
• APFC with PF Value of 0.99
• Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP
The HELIOS M1-650B features an 80 PLUS Bronze certification that guarantees 85% efficiency, and flat black cables for easy installation and cable management. It is also equipped with a 120mm hydraulic bearing smart fan that can adjust the fan speed according to temperature automatically and ensure low-noise operation.
Certified with 80 PLUS Bronze, the HELIOS M1-650B delivers stable power output at up to 85% efficiency and reduces energy consumption.

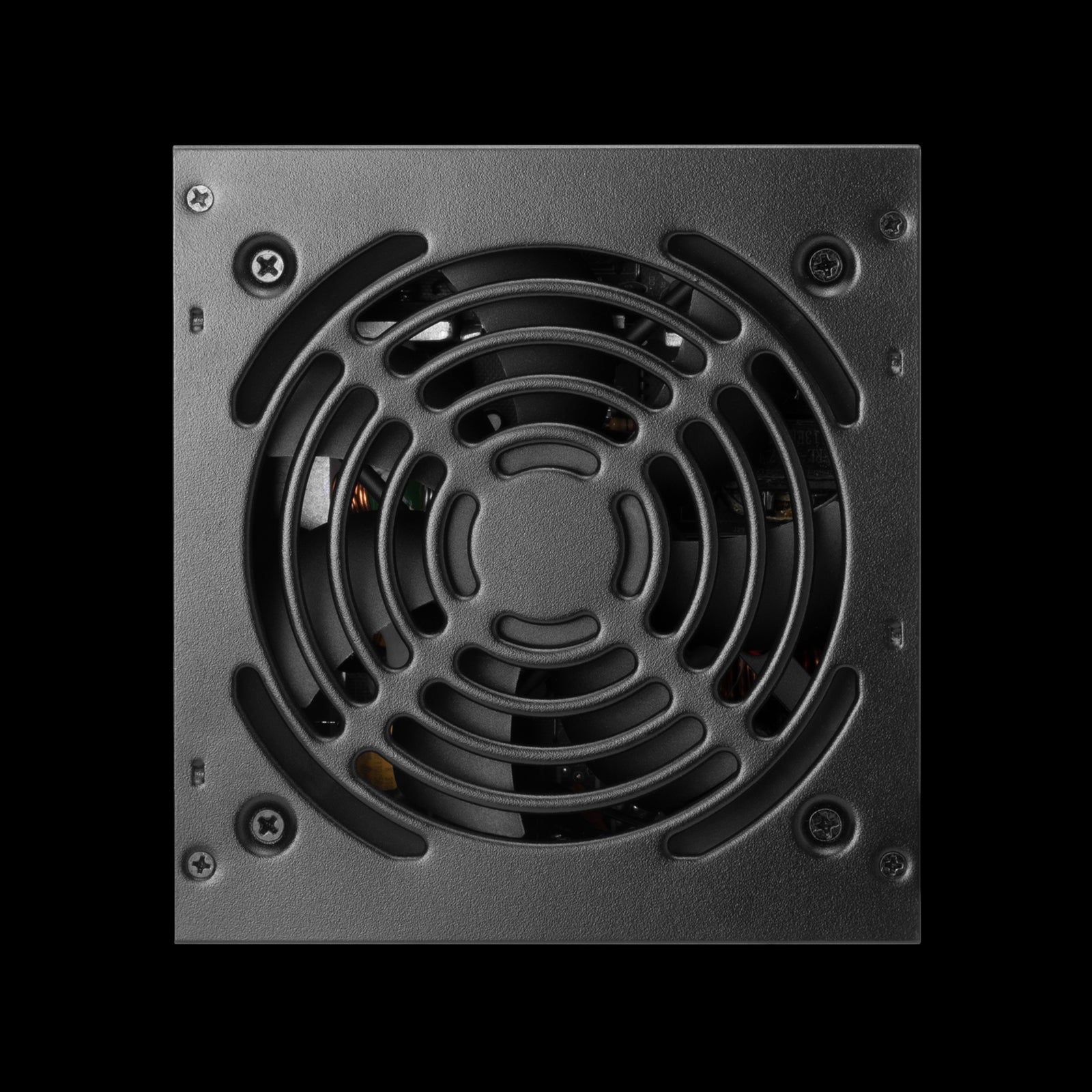

The power supply unit features automatic fan speed optimization, which allows the fan speed to be adjusted according to the detection of temperature and load. The 120mm hydraulic bearing fan ensures stable operation and longer lifespan.
Model
GAMDIAS HELIOS M1-650B
Wattage
650W
Efficiency
85% Efficiency
Modular
Non Modular
Form Factor
ATX12V v2.4
Connectors
Main Power 1 (20+4 Pin)
CPU 1 (4+4 Pin)
PCI-E 2 (6+2 Pin)
SATA 5 (5 Pin)
Molex 3 (4 Pin)
Protections
OVP / UVP / OPP / OCP / SCP
Dimensions
140 x 150 x 86 mm
