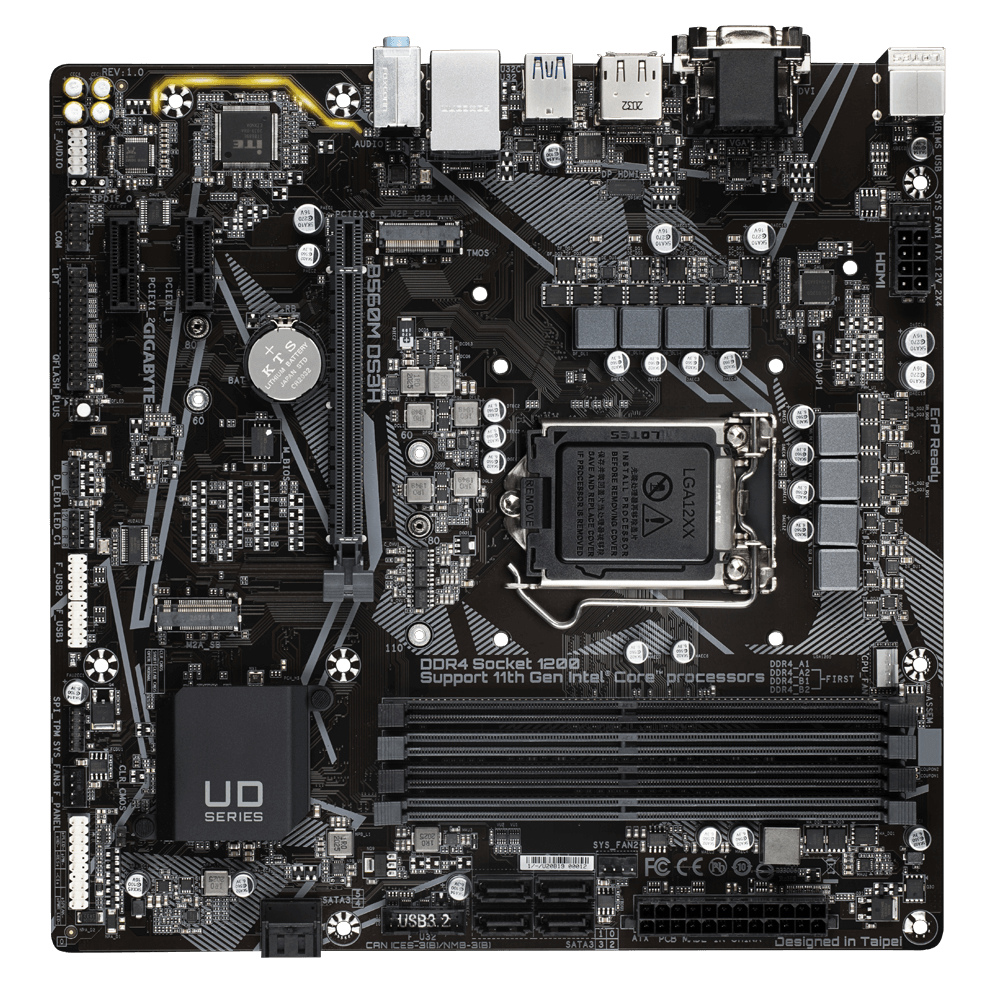

Enhance your system with the Intel B560 Ultra Durable Motherboard, featuring a Direct 6+2 Phases Digital VRM for stable power delivery. Ideal for high-performance and reliable builds.
Supports full PCIe 4.0 design and includes PCIe 4.0 M.2 slots for fast data transfer and expansion. Perfect for modern GPUs and high-speed storage solutions.
Includes dual-band 802.11ac Wi-Fi, GIGABYTE 8118 Gaming LAN, and 8-ch HD Audio with Audio Caps for seamless connectivity and superior audio experience. Enjoy fast and reliable network performance.
Features USB Type-C®, RGB FUSION 2.0 for customizable lighting, and Q-Flash Plus for easy BIOS updates. A great choice for a feature-rich and versatile motherboard solution.

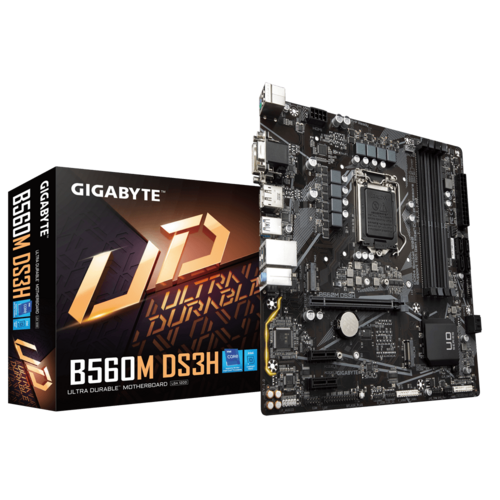

Model
B560M DS3H AC
Supported Memory
DDR4
Onboard Graphics
Integrated Graphics Processor with Intel UHD Graphics
Supported Audio
Realtek® ALC1200 codec, 7.1-channel High Definition Audio
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
WiFi 6E
Expansion slots
1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs
Supported USB

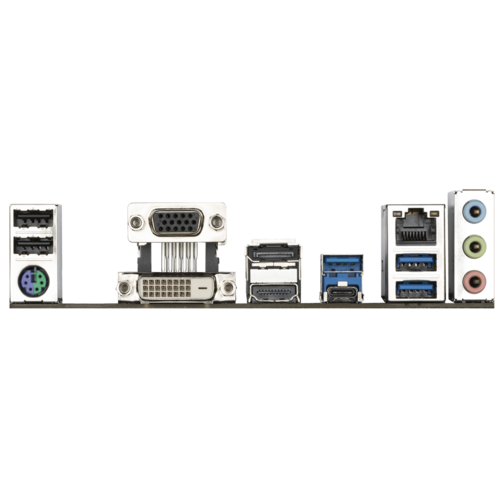

2 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0
Internal I/O connectors
1x 24-pin ATX, 1x 8-pin CPU, 1x 4-pin CPU, 6x SATA, 2x USB 2.0, 2x USB 3.2 Gen 2
H/W monitoring
CPU temperature, Fan speed,Voltage detection,Temperature detection,Water cooling flow rate detection.
BIOS
1 x 128 Mbit flash,UEFI BIOS,
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center,* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.,@BIOS,EasyTune.Smart Backup,System Information Viewer,Support for Q-Flash.
Operating System
Windows 10 64-bit, Windows 11 64-bit
Form Factor
ATX
