Product information

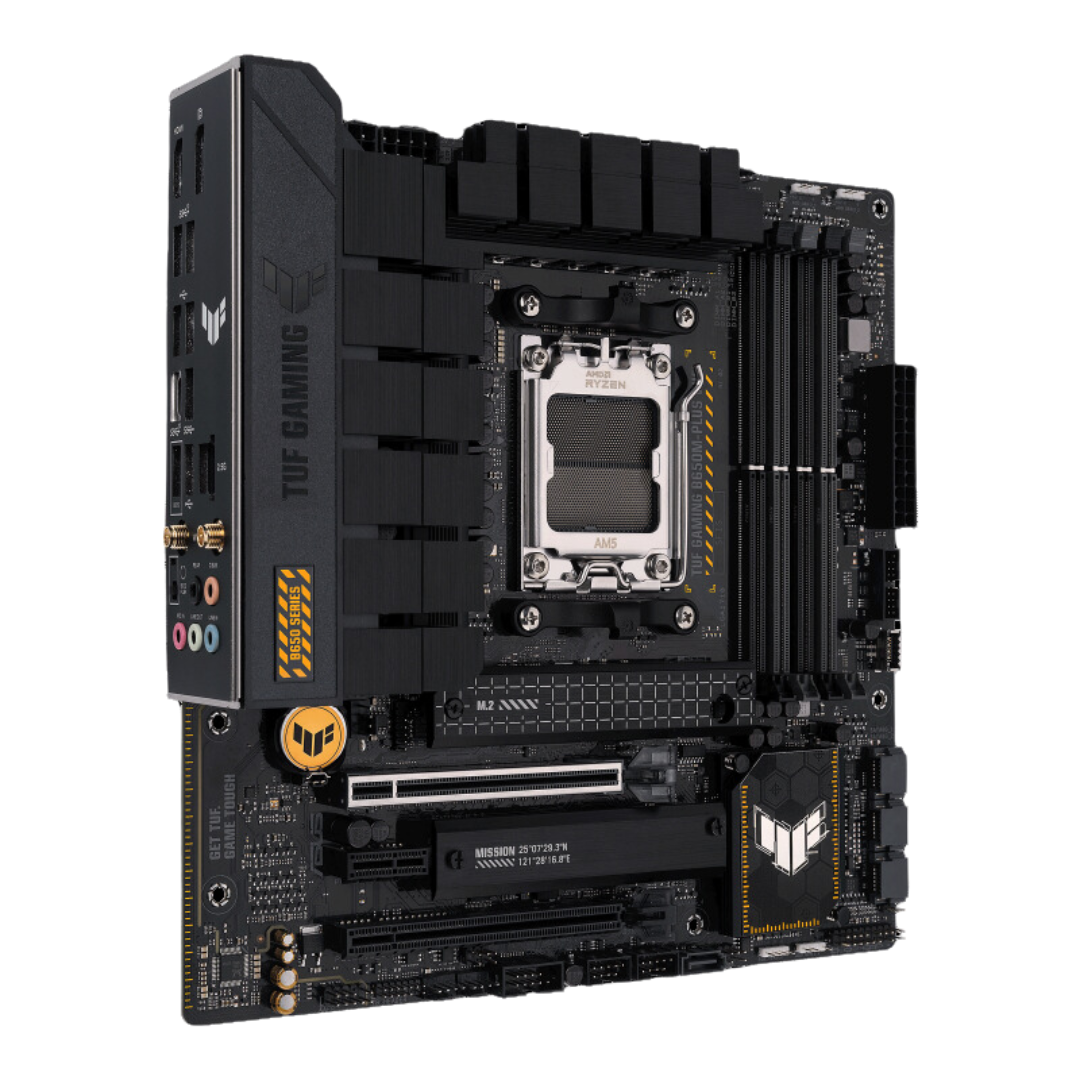

Looking for a high-performing, reliable, and feature-packed motherboard for your gaming PC build? If so, the ASUS TUF Gaming B650M Plus WIFI Motherboard may be the perfect choice for you. With a range of cutting-edge technologies, robust construction, and support for the latest processors and memory modules, this motherboard provides a solid foundation for your gaming setup.
Designed to accommodate AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 Series Desktop Processors, the ASUS TUF Gaming B650M Plus WIFI Motherboard offers incredible CPU support for a seamless and responsive gaming experience. The AMD B650 chipset ensures efficient data transfer and system operation, allowing you to push your gaming rig to its limits without compromising reliability.
Memory is a crucial factor in gaming performance, and this motherboard provides ample support for DDR5 7600+ memory modules. With a maximum capacity of 192GB and the ability to handle overclocked memory configurations, you can enjoy smooth multitasking, seamless gameplay, and lightning-fast data access while maintaining system stability.
When it comes to graphics, the ASUS TUF Gaming B650M Plus WIFI Motherboard offers a DisplayPort and HDMI port to support high-resolution, high-refresh-rate gaming monitors. With the ability to handle up to 8K@60Hz via DisplayPort and 4K@60Hz via HDMI, you can immerse yourself in stunning visuals and smooth gameplay.
Expansion slots include PCIe 4.0 x16 slots, allowing you to install powerful graphics cards, and high-speed M.2 slots that support PCIe 5.0 and 4.0 modes. Storage options are versatile, with support for NVMe RAID and SATA RAID configurations, ensuring rapid data access and ample capacity for your games and multimedia files.
Connectivity is also robust, with a Realtek 2.5Gb Ethernet port, Wi-Fi 6, and Bluetooth v5.2 support. This allows for low-latency online gaming, high-speed file transfers, and seamless connectivity to your other devices.
The ASUS TUF Gaming B650M Plus WIFI Motherboard also provides a comprehensive range of USB ports, audio jacks, and internal connectors to support your gaming peripherals, audio equipment, and additional hardware.
With TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, and a range of exclusive software features, this motherboard offers enhanced durability, innovative design, and streamlined system management.
The micro-ATX form factor allows for easy integration into a wide range of PC cases, making it a versatile choice for various gaming setups. Additionally, its UEFI AMI BIOS provides seamless system configuration and management, ensuring that you can customize your PC the way you want.
In summary, the ASUS TUF Gaming B650M Plus WIFI Motherboard is a powerhouse of performance, reliability, and innovation, making it an ideal choice for any gaming enthusiast looking to build a high-quality gaming PC. With its support for the latest processors, high-speed memory, versatile storage options, and comprehensive connectivity features, this motherboard will set the stage for a truly immersive and enjoyable gaming experience.
Model
TUF Gaming B650M PLUS WIFI
Supported Memory
4 x DIMM, max 128GB DDR5
Onboard Graphics
DisplayPort 1.4, HDMI 2.1
Supported Audio
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
LAN
Realtek RTL8125B 2.5Gb Ethernet
Wireless Communication module
Wi-Fi 6E (802.11ax) + Bluetooth 5.2
Expansion slots
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 2 x PCIe 3.0 x1
Storage Interface
6 x SATA 6Gb/s, 2 x M.2 (1 PCIe 4.0 x4, 1 PCIe 3.0 x4)
Supported USB
1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 6 x USB 2.0
Internal I/O connectors
1 x CPU fan connector(s), 1 x CPU OPT fan connector(s), 2 x Chassis fan connector(s), 1 x AIO_PUMP connector(s), 1 x Addressable Gen 2 header(s), 1 x RGB header(s), 1 x SPI TPM header(s), 1 x COM port header(s), 1 x Front panel audio connector(s) (AAFP), 1 x Internal speaker connector(s), 1 x Clear CMOS jumper(s), 1 x System panel connector
H/W monitoring
Voltage/Temperature/Fan monitoring
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Unique Features
TUF Gaming AI Noise Cancelling Microphone, Armoury Crate, ASUS AI Overclocking, ASUS AI Cooling, TUF Aura Sync RGB lighting, TUF Protection, Pre-mounted I/O shield, Q-Code, Q-Connector
Bundled Software
NULL
Operating System
Windows 10 64-bit, Windows 11
64-bit
Form Factor
Micro-ATX
