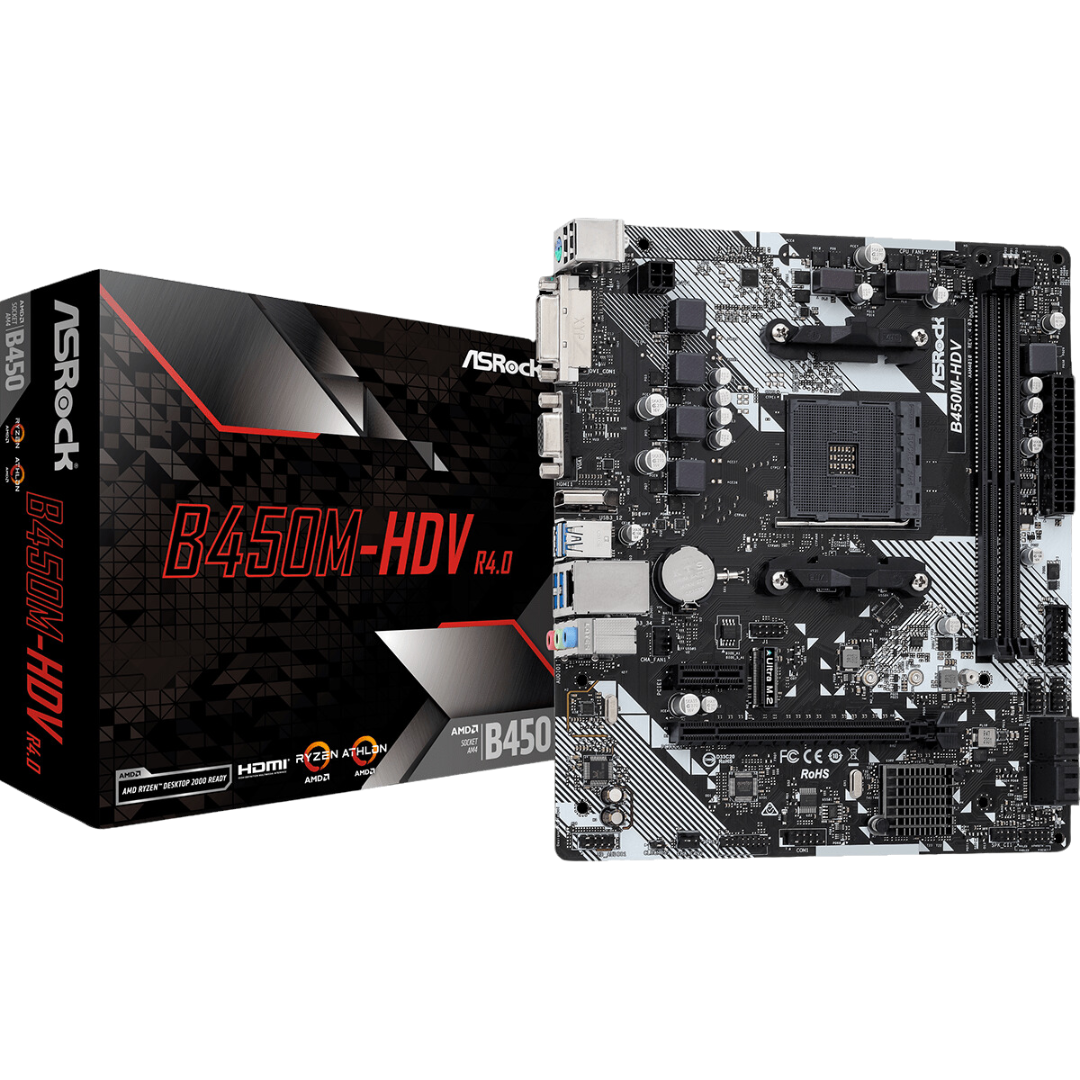

ASRock B450M-HDV R4.0 Micro ATX Motherboard with AMD AM4 Socket, PCIe Gen3 x4, and SATA3.

The ASRock B450M-HDV R4.0 Motherboard is a powerhouse designed to support AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors. It's equipped with a high-density glass fabric PCB and sapphire black PCB for PCIe Gen3 x4 & SATA3, ensuring durability and performance. The motherboard features ASRock Live Update & APP Shop for seamless updates and application management.

This motherboard boasts a 6 power phase design and supports CPUs up to 105W, making it ideal for demanding computing tasks. The AMD Promontory B450 chipset ensures smooth and efficient performance, while the dual channel DDR4 memory technology and 2 DDR4 DIMM slots can support up to 64GB of system memory.

The motherboard's 128Mb AMI UEFI Legal BIOS with GUI support allows for easy configuration and customization, supporting "Plug and Play" and ACPI 5.1 compliance wake up events. Additionally, it features a high-definition audio codec, LAN connectivity, and a range of expansion slots and storage options.

The integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU with DirectX 12 and Pixel Shader 5.0 provides stunning visuals, supporting up to three monitors and offering a selection of graphics output options including D-Sub, DVI-D, and HDMI. The audio system is equipped with surge protection for optimal sound quality.

For connectivity, the motherboard features PCIE x1 Gigabit LAN with Realtek RTL8111H, providing lightning/ESD protection, energy-efficient Ethernet, and support for PXE. It also includes USB 2.0 and USB 3.1 Gen1 headers for extensive device compatibility.

In terms of storage, the B450M-HDV R4.0 supports RAID and features multiple SATA3 6.0 Gb/s connectors, as well as an Ultra M.2 Socket for M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module support.

The rear panel I/O offers a variety of ports, including PS/2, D-Sub, DVI-D, HDMI, USB 2.0 and USB 3.1 Gen1, as well as RJ-45 LAN and HD audio jacks for seamless external connectivity.

This motherboard also comes equipped with ASRock A-Tuning, ASRock XFast LAN, ASRock Full HD UEFI, ASRock Instant Flash, and ASRock Easy RAID Installer software and UEFI for intuitive and streamlined system management.

Support CD includes drivers, utilities, anti-virus software (trial version), and Google Chrome browser and toolbar, while additional accessories such as SATA data cables and a screw for M.2 socket are also included.

With a solid capacitor design and a micro ATX form factor, the B450M-HDV R4.0 Motherboard offers a compact and durable solution for various computing needs. It is compatible with Microsoft Windows 10 64-bit / 11 64-bit and is FCC, CE, and ErP/EuP ready.

In summary, the ASRock B450M-HDV R4.0 Motherboard is a feature-packed and high-performance motherboard that caters to the needs of modern computing, providing seamless connectivity, impressive graphics support, and efficient system management.
