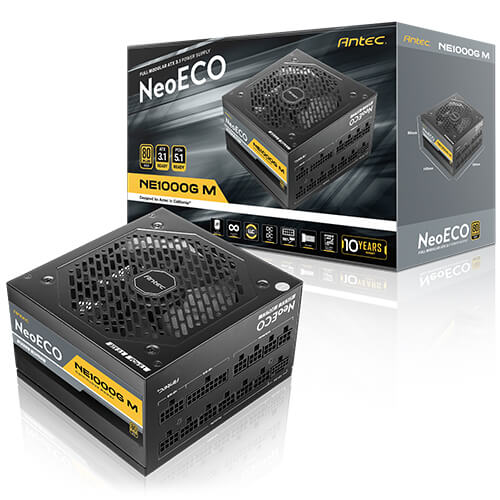

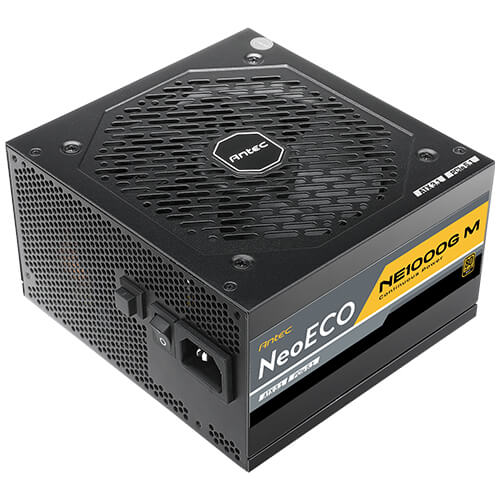

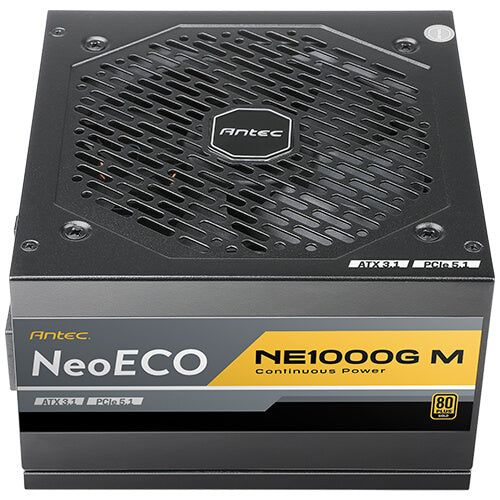

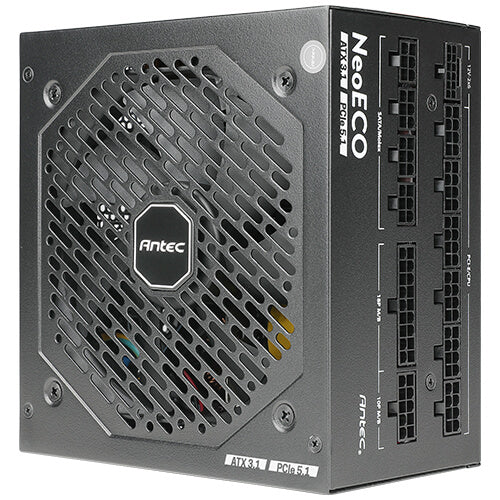

ANTEC NE1000G M ATX3.0 Power Supply
ATX 3.1 & PCIe 5.1 Compatible Our new NEG M ATX 3.1 Series power supplies meet the high standards of the ATX 3.1 standard for reliability and power efficiency, which are formally certified for ATX 3.1 compliance, ensuring the utmost level of quality and performance. The included PCIe 5.1 12V-2x6 GPU cable enables seamless compatibility with modern graphics cards, such as the NVIDIA® GeForce RTX™ 50 Series.
High-Quality JP Capacitors Equipped with high-quality JP capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance. PhaseWave TM Design Introducing our PhaseWave™ Design, a server-classLLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.

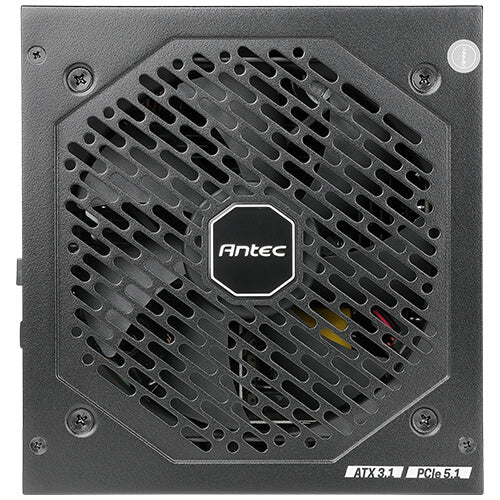

120mm FDB Silent Fan The whisper-quiet, 120mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.

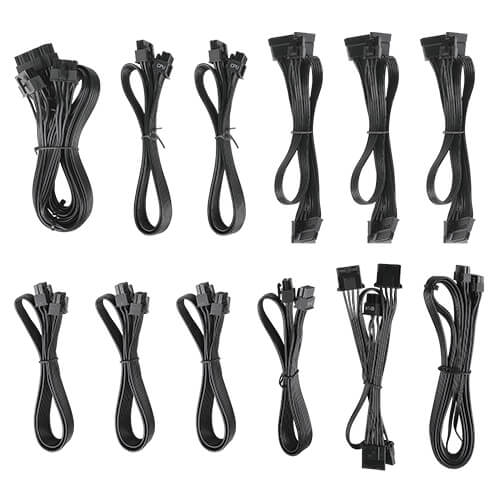

Full Modular Cable Management Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.
Compact SizeCompared to typical power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.
Model
NE1000G M ATX3.0
Wattage
1000W
Modular
Full Modular
Form Factor
ATX 12V 3.1

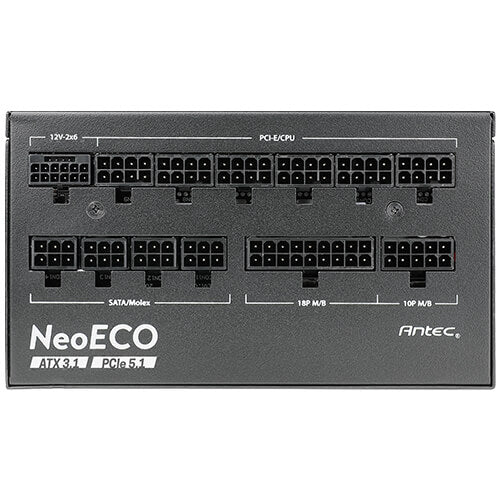

Connectors
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.1 12V-2x6
2 x 8(4+4)pin CPU
4 x 8(6+2) Pin PCI-E
12 x SATA
4 x Molex
Protections
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Dimensions
140 x 150 x 86 mm
